Panoramic Sliding Door

$0.00

Designed for breathtaking views, this door features ultra-large panels up to 8′ 2″ × 10′ 2″ with over 97% glass transparency, creating an expansive, unobstructed outlook. Smooth, quiet rollers support heavy panels for effortless sliding, while a thoughtfully engineered drainage system protects against rain and backflow—keeping your home dry, comfortable, and ready for any weather.

Use Cases

Residential: Living rooms, dining rooms, kitchens

Commercial: Restaurants & bars, office spaces, educational spaces, retail storefronts

Specialized: Coastal & high wind areas, accessible entrances, temporary partitioning

Designed for breathtaking views, this door features ultra-large panels up to 8′ 2″ × 10′ 2″ with over 97% glass transparency, creating an expansive, unobstructed outlook. Smooth, quiet rollers support heavy panels for effortless sliding, while a thoughtfully engineered drainage system protects against rain and backflow—keeping your home dry, comfortable, and ready for any weather.

Use Cases

Residential: Living rooms, dining rooms, kitchens

Commercial: Restaurants & bars, office spaces, educational spaces, retail storefronts

Specialized: Coastal & high wind areas, accessible entrances, temporary partitioning

    • Maximized Panel Size
      Max panel dimensions 98.43″ × 122.05″ with over 97% glass transparency for expansive, uninterrupted views.

    • Robust Load Capacity
      Ultra-strong 1102 lb rollers ensure large panels slide safely and steadily.

    • Smooth & Quiet Operation
      Engineered for effortless, noise-free opening and closing.

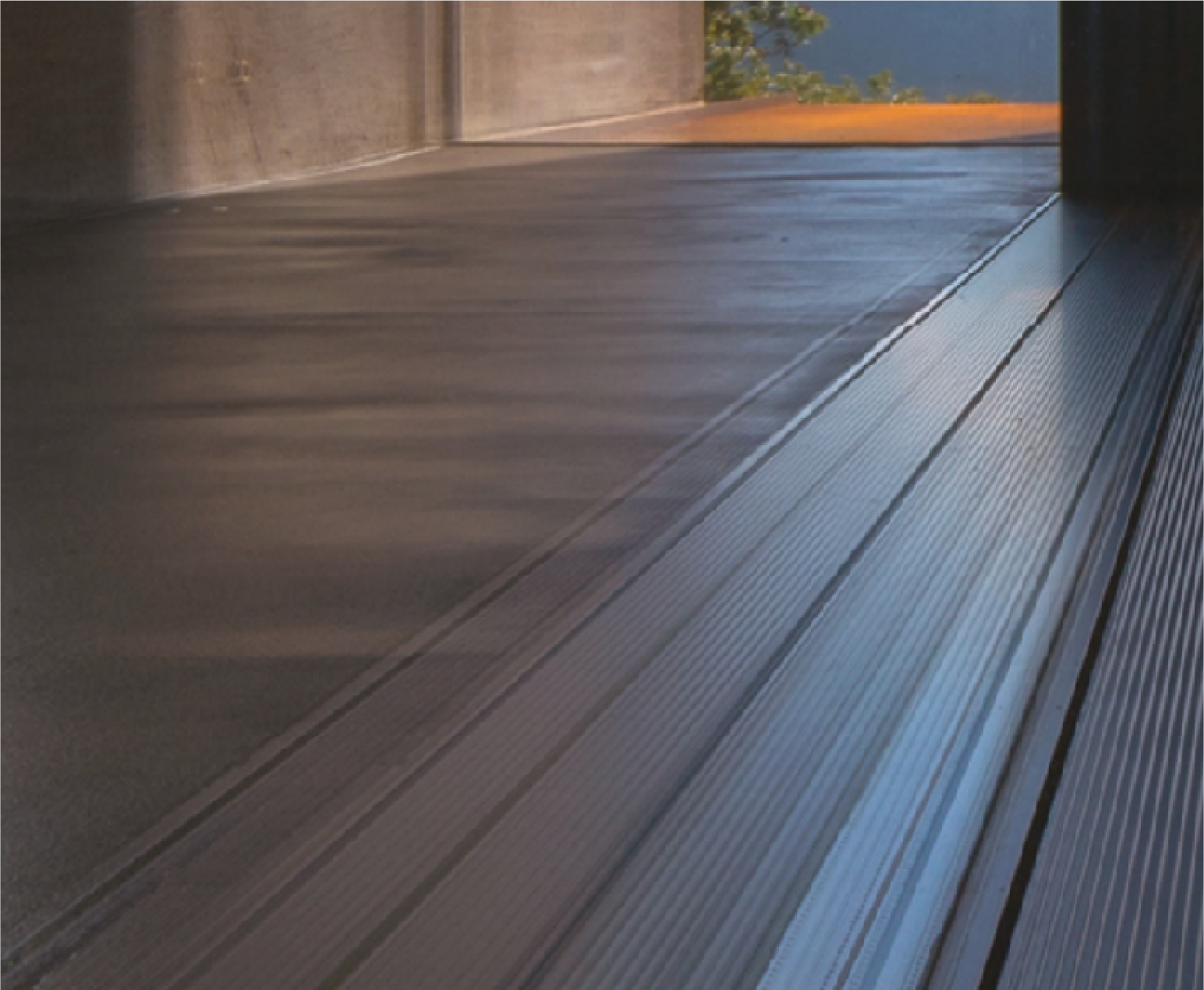

    • Optimized Drainage System
      Specialized channels quickly discharge water, keeping interiors dry and protected.

  • Aluminum

    0.08” Thickness thermal break aluminum

    Frame Width

    7.72”

    Insulation Strip

    Enxingge thermal break strip (1-5/16”)

    Sealing Strip

    Xin’andong foamed composite EPDM sealing strip

  • Imported Solonco sliding hardware

  • Glass

    1/4”-5/8”-1/4”-5/8”-1/4”

    SIngle Sash Max W x H

    118 1/8” x 196 7/8”

  • Heat Insulation

    1.5W/m²K

    Sound Insulation

    40dB

    Water Tightness

    700Pa

    Air Tightness

    2.0m³/(m²*h)

    Wind Resistance

    4.0Kpa
