Slim 65 Profile

Sleek, Strong,
High-Performance

The Slim 65 steel profile transforms ordinary rooms into ultra-contemporary spaces. Featuring sleek, elegant lines and high-strength steel with ultra-slim sightlines, it’s ideal for high-end villas, clubs, and historical building restoration.

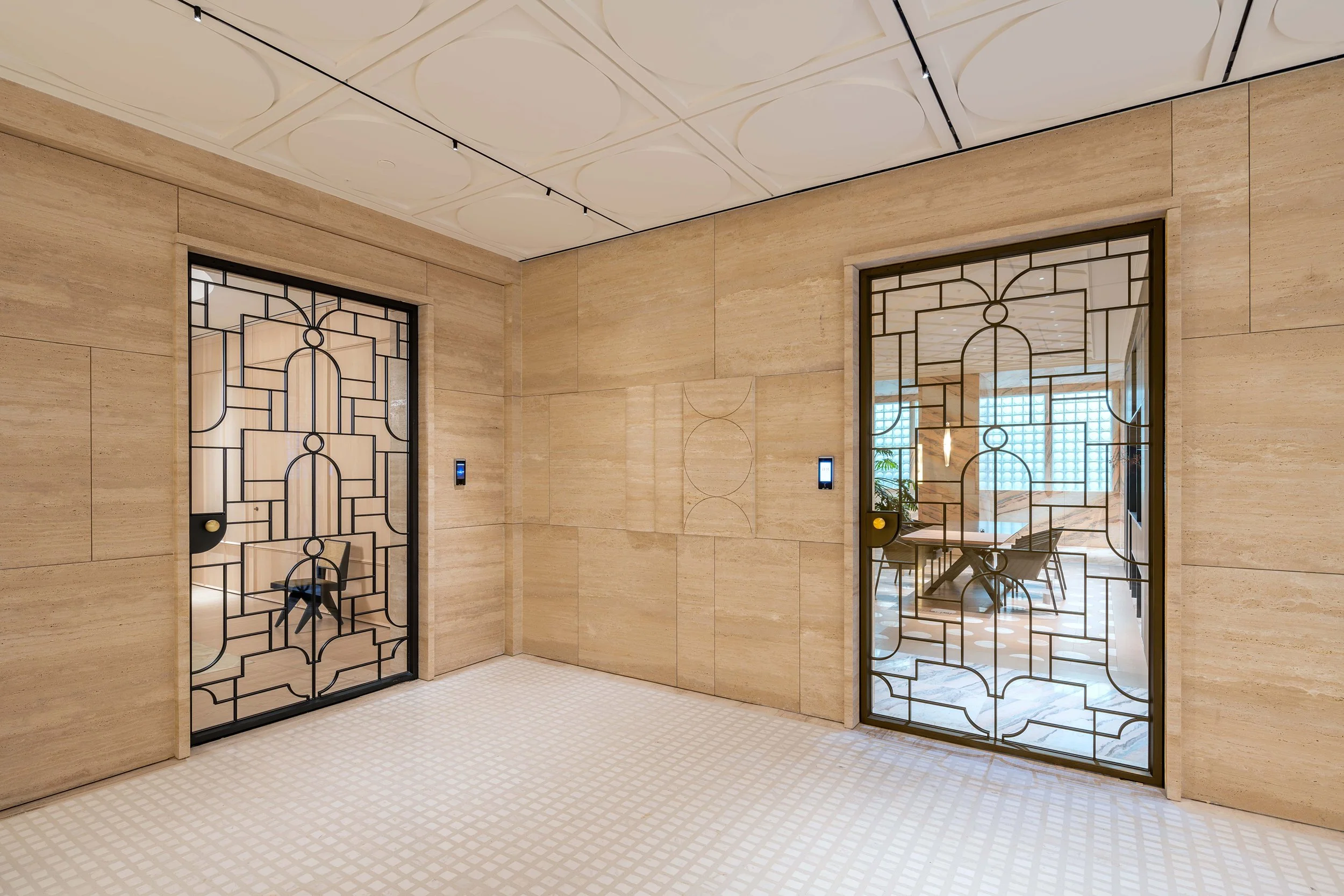

Interior of a modern building with two glass doors featuring black geometric patterns, beige stone walls, a light-colored step patterned floor, and a view into a room with a dining table and chairs in the background.

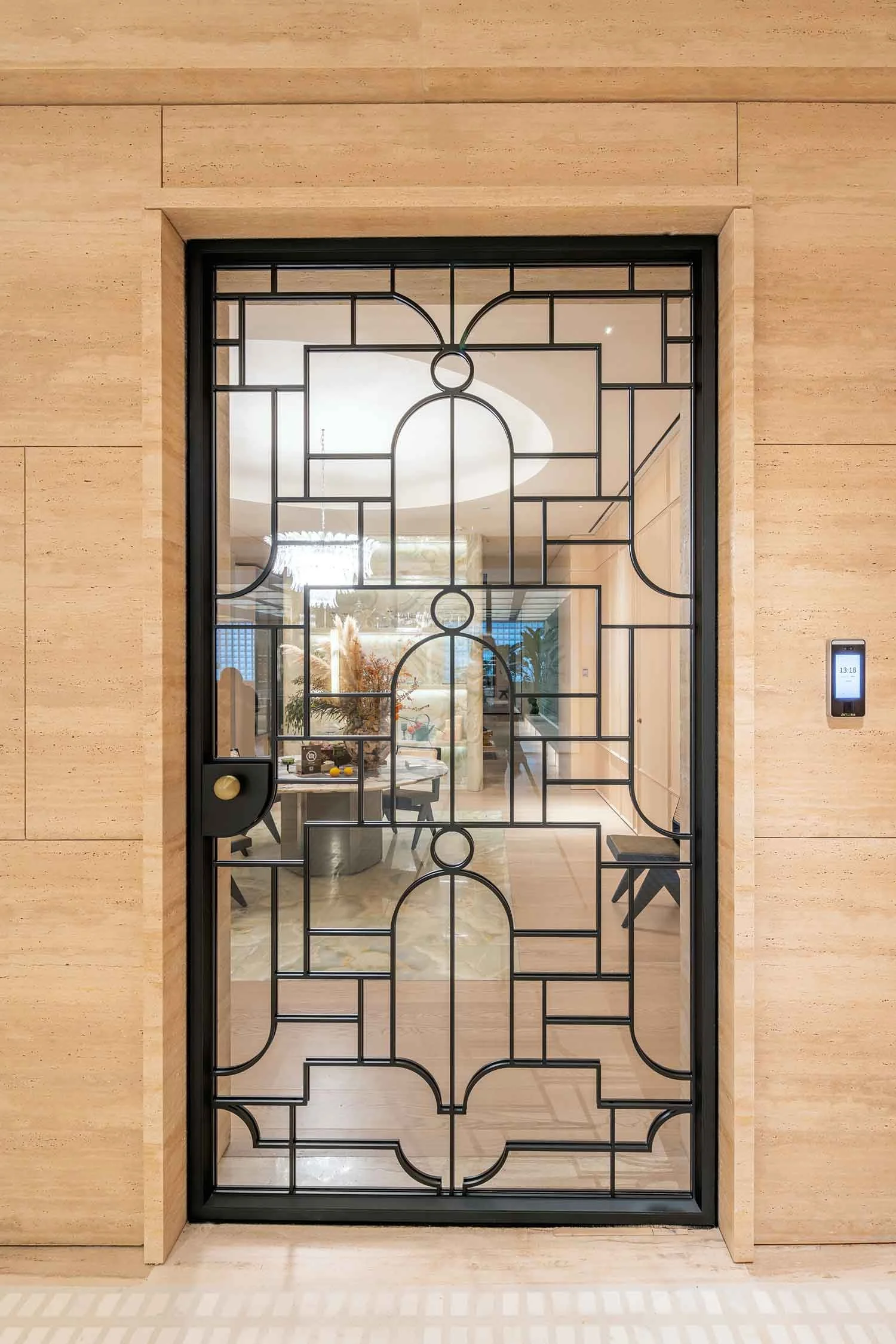

Decorative glass door with black geometric patterns leading to a dining and living area inside a modern home.

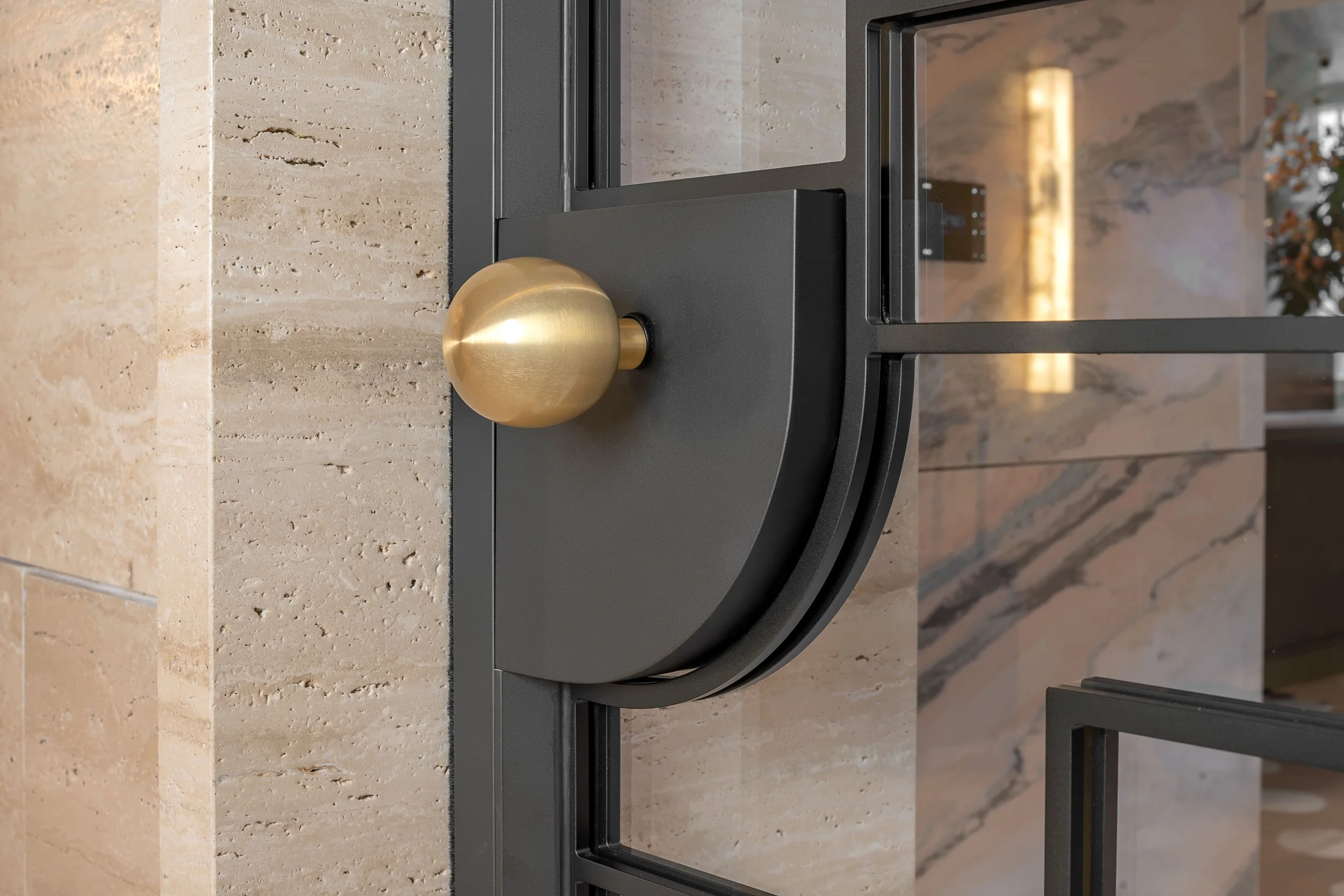

Close-up of a decorative black metal and gold door handle with a round gold knob on a black curved plate, mounted on a beige stone wall.

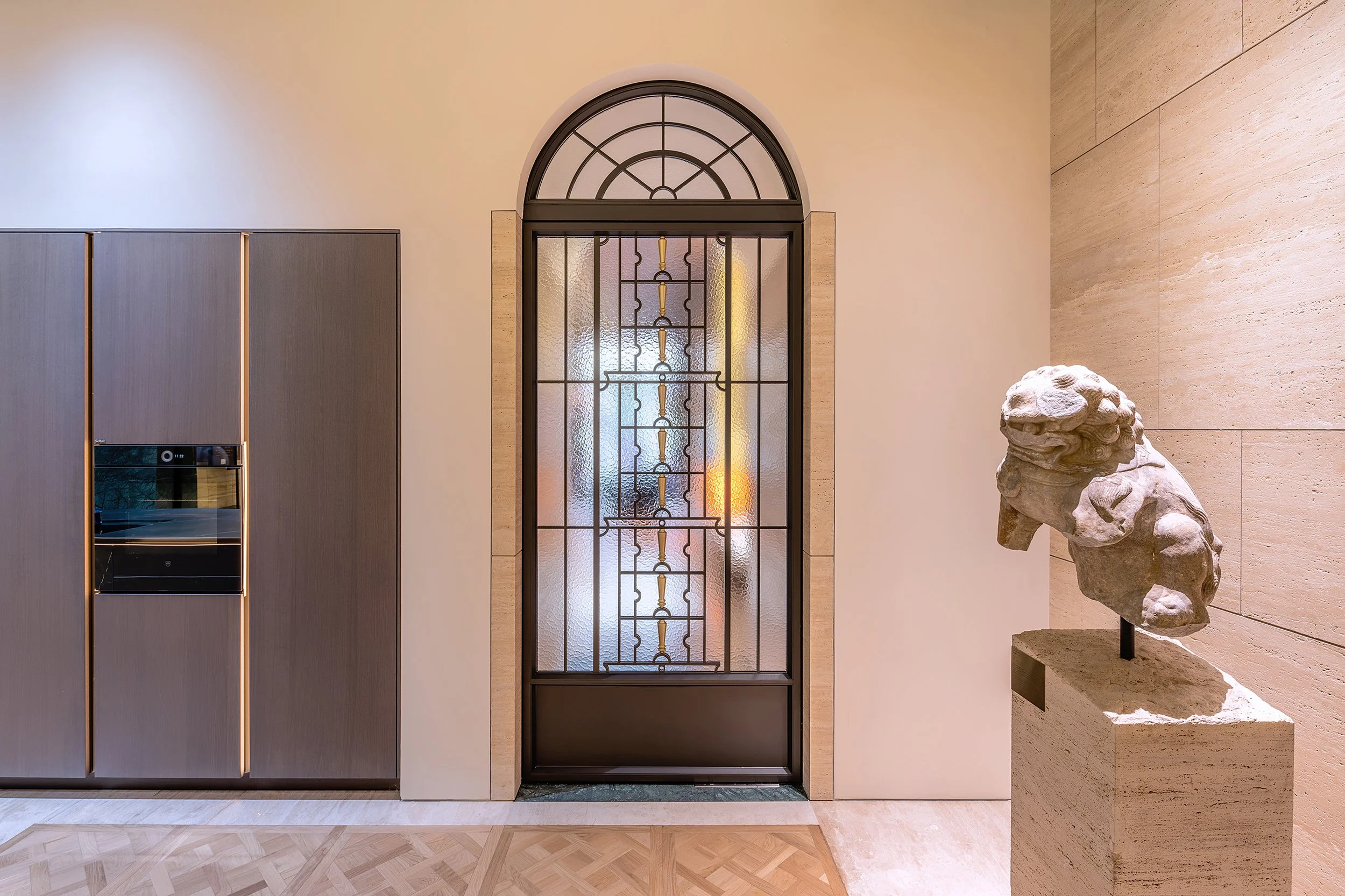

Interior view of a modern building with a decorative glass door, a stone sculpture of a lion, and built-in kitchen cabinetry.

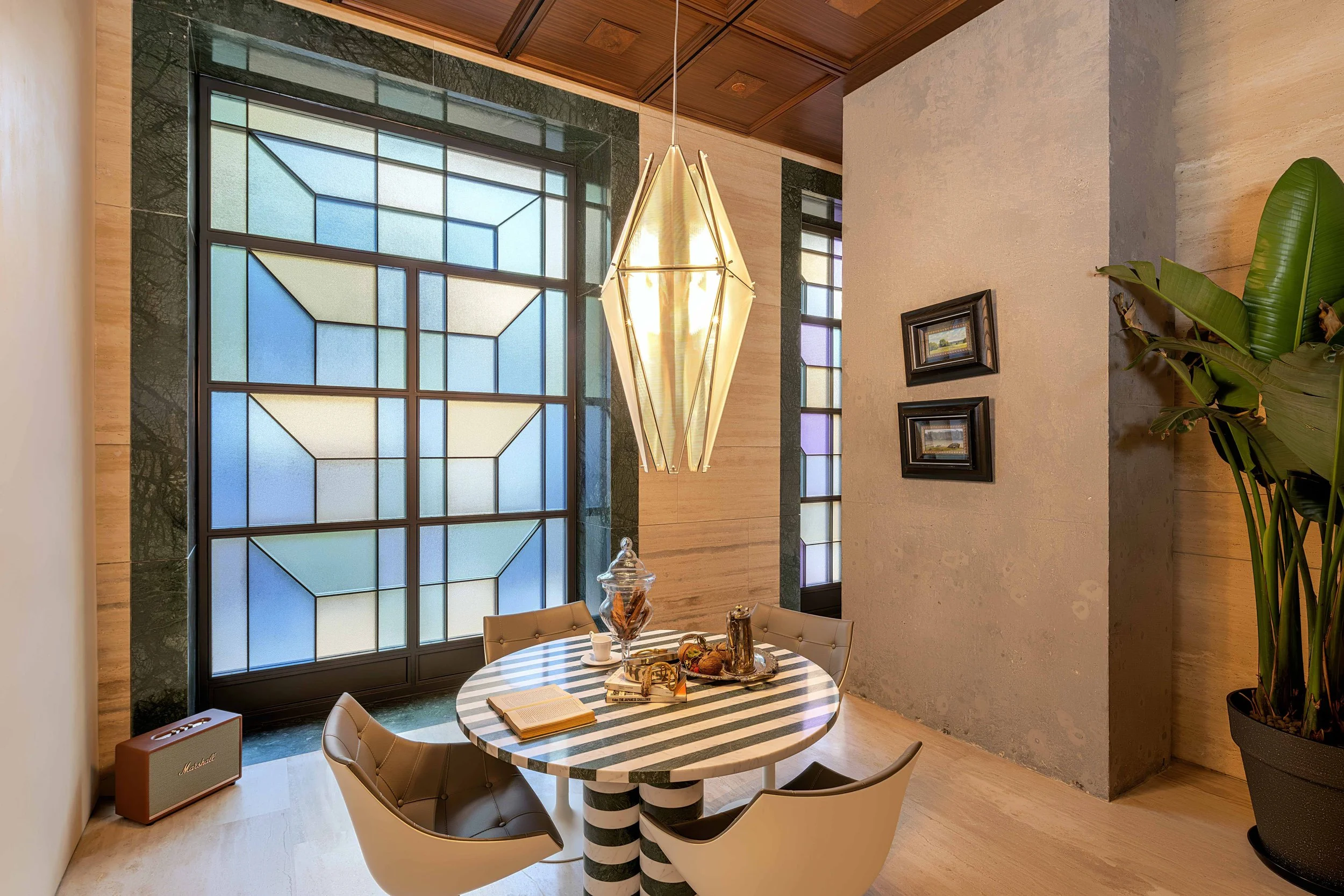

A cozy dining area with a round striped black and white table, surrounded by four modern beige chairs. A large, geometric pendant light hangs above the table. The background features a colorful stained glass window with blue, green, and purple sectio

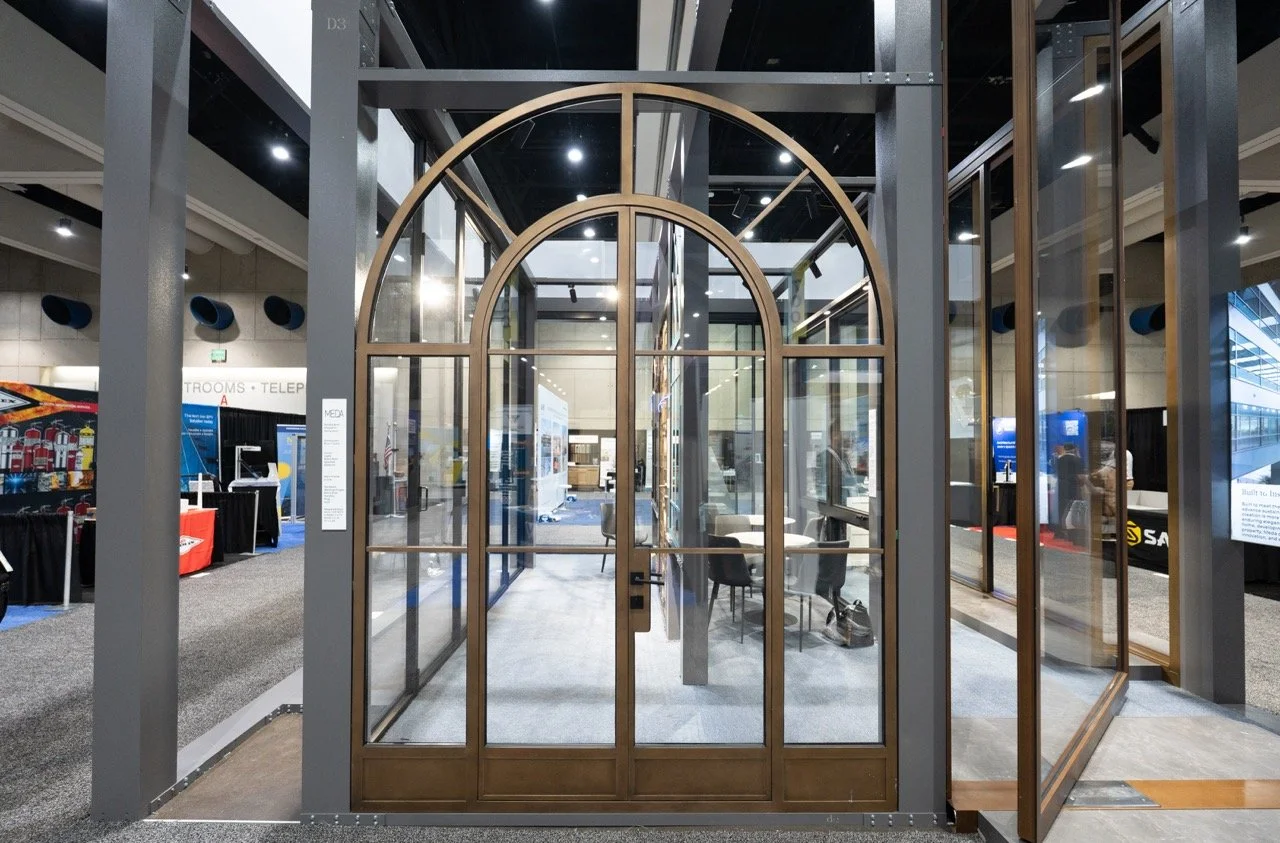

_DSC8555 Large.jpeg

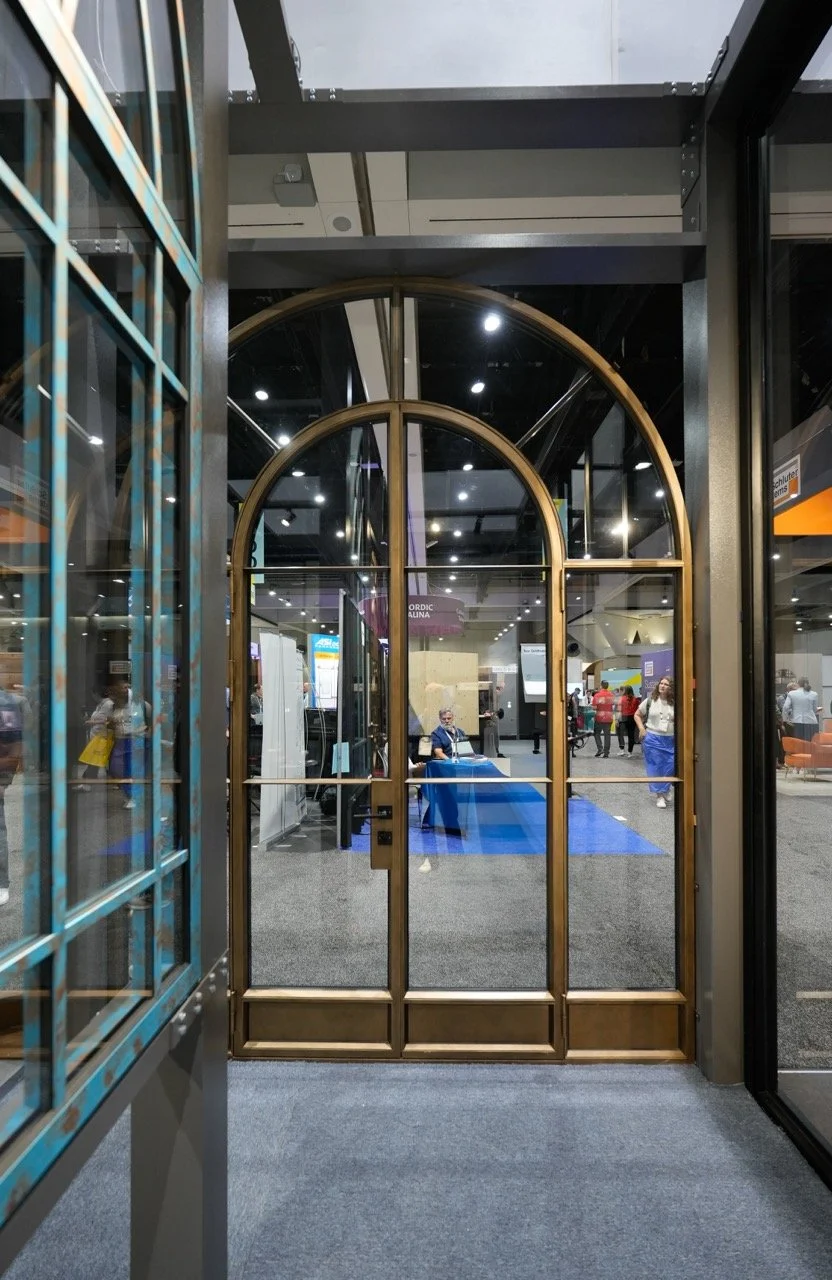

_DSC8718 Large.jpeg

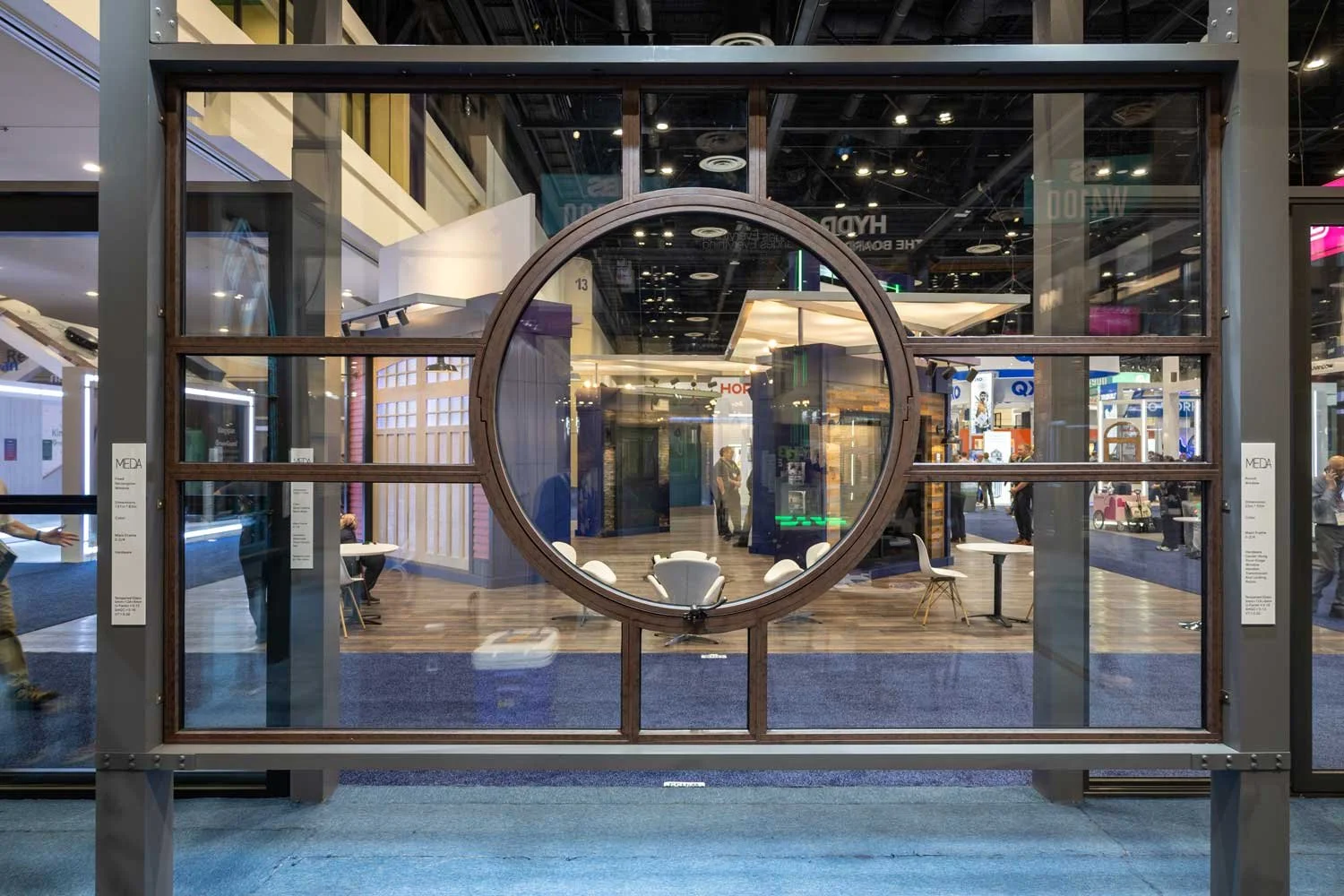

View through a large window with a circular design in the center, showing a modern interior space with seating and people inside a showroom or exhibition hall.

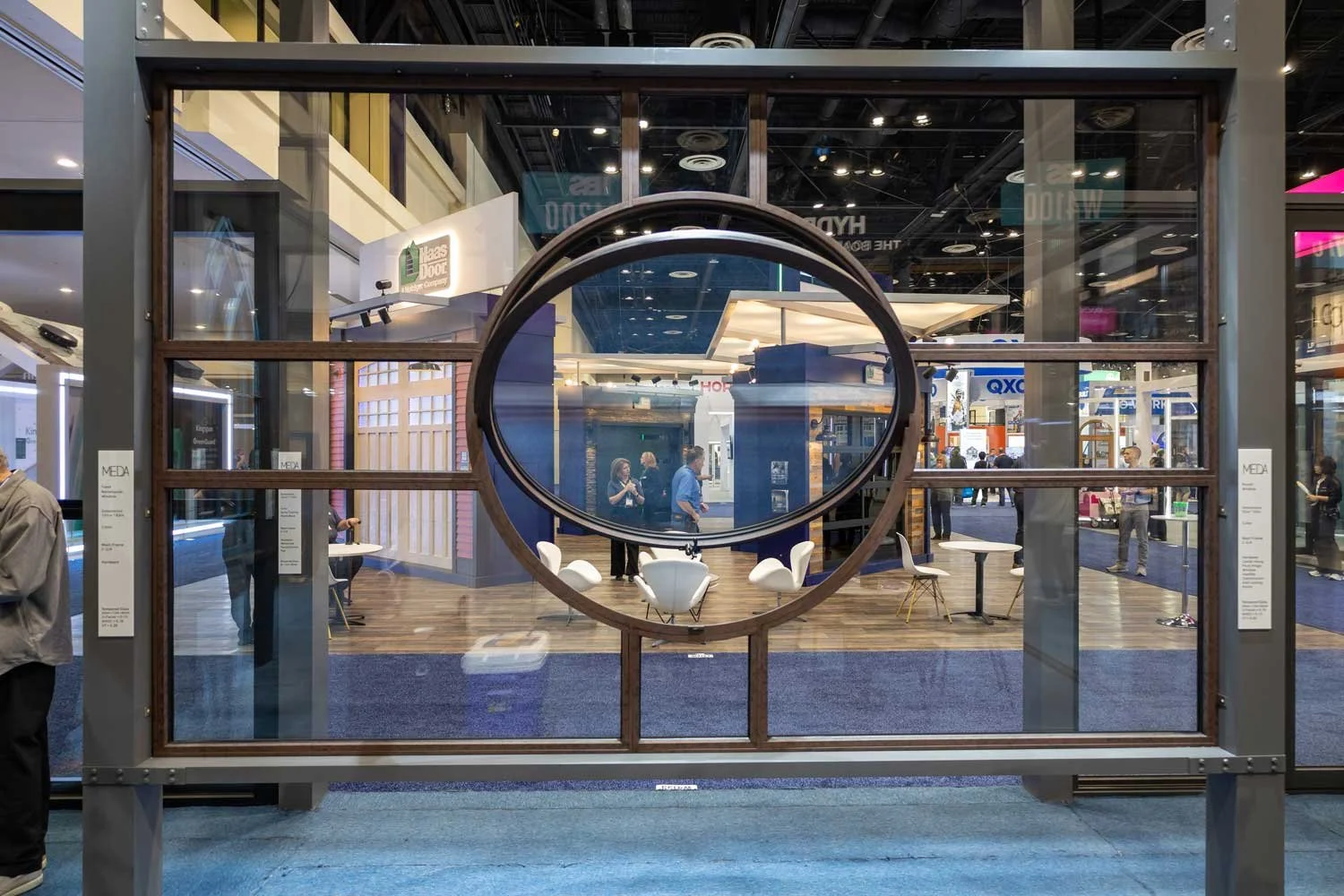

A large glass and metal frame display with a circular mirror inside, showing a busy exhibition hall with several booths and people.

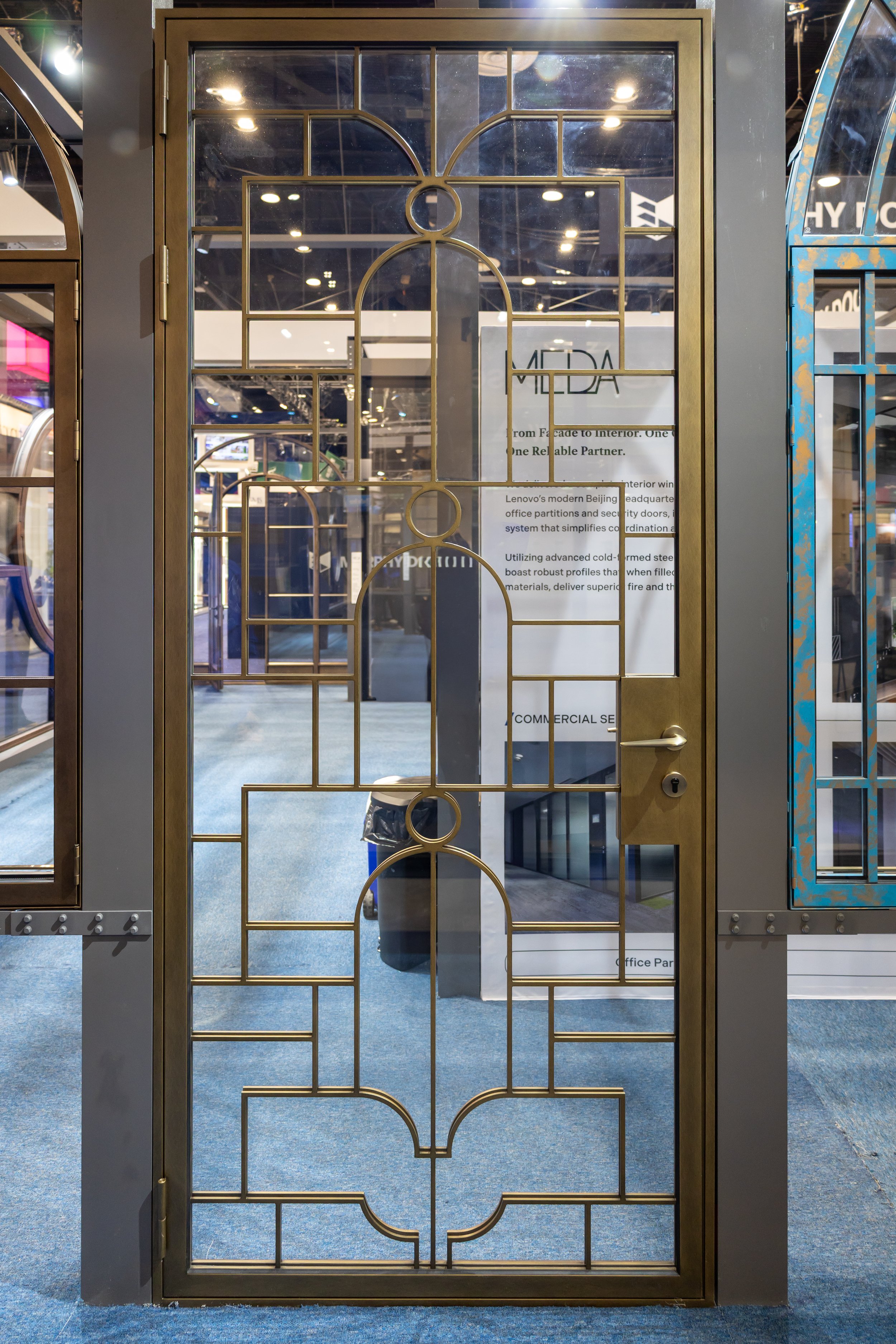

Gold-colored decorative security door with geometric patterns on a retail display, viewed through a glass window.

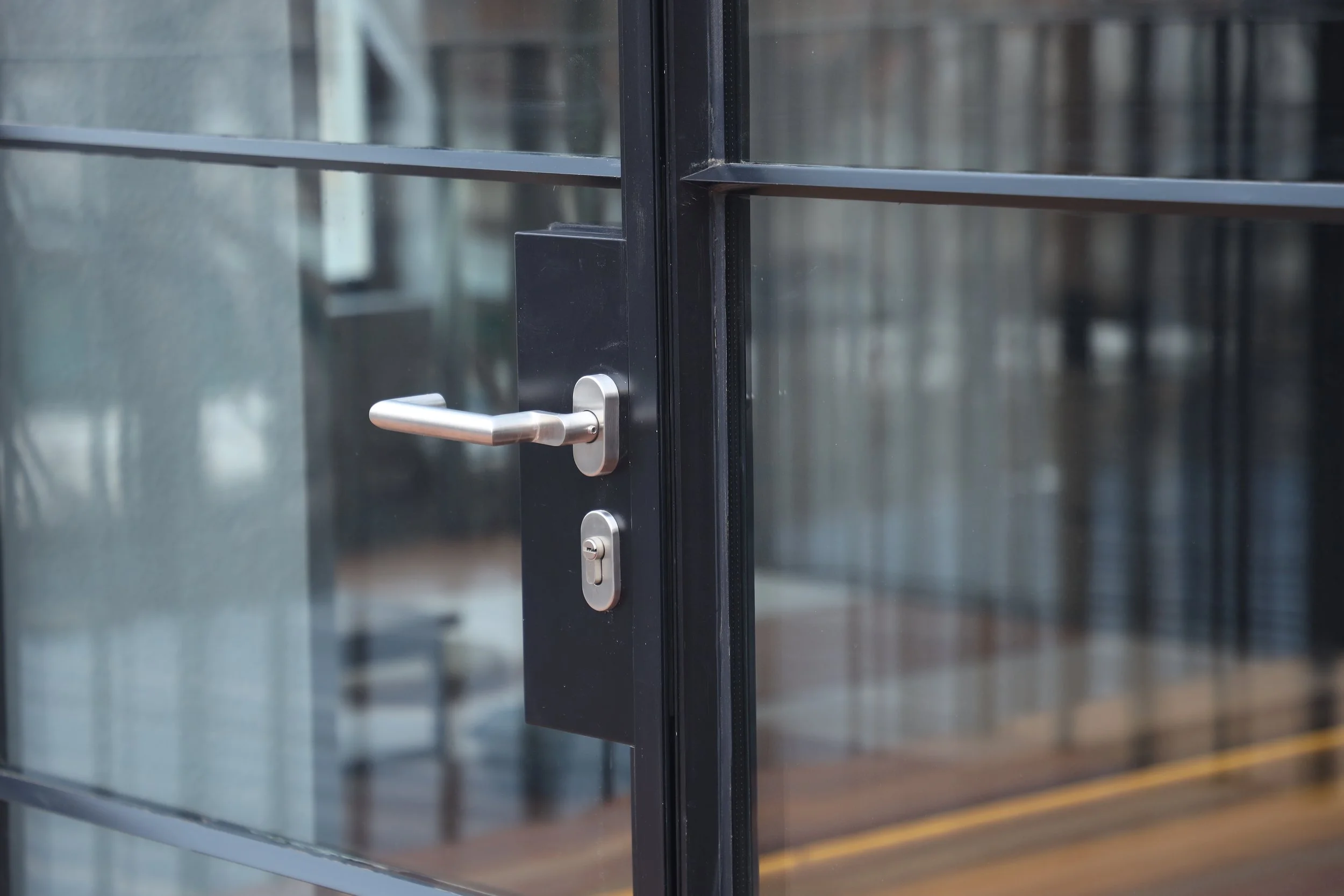

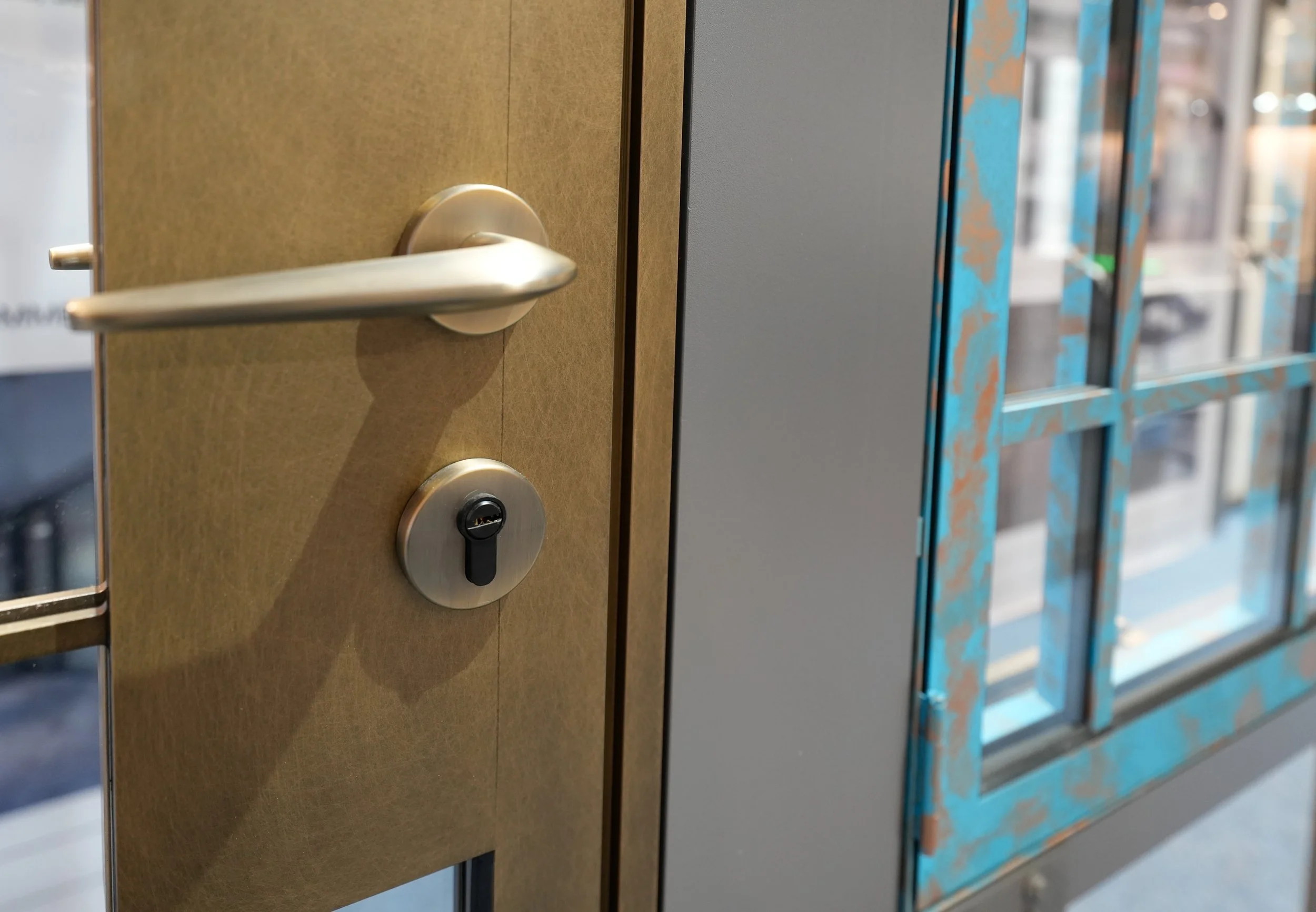

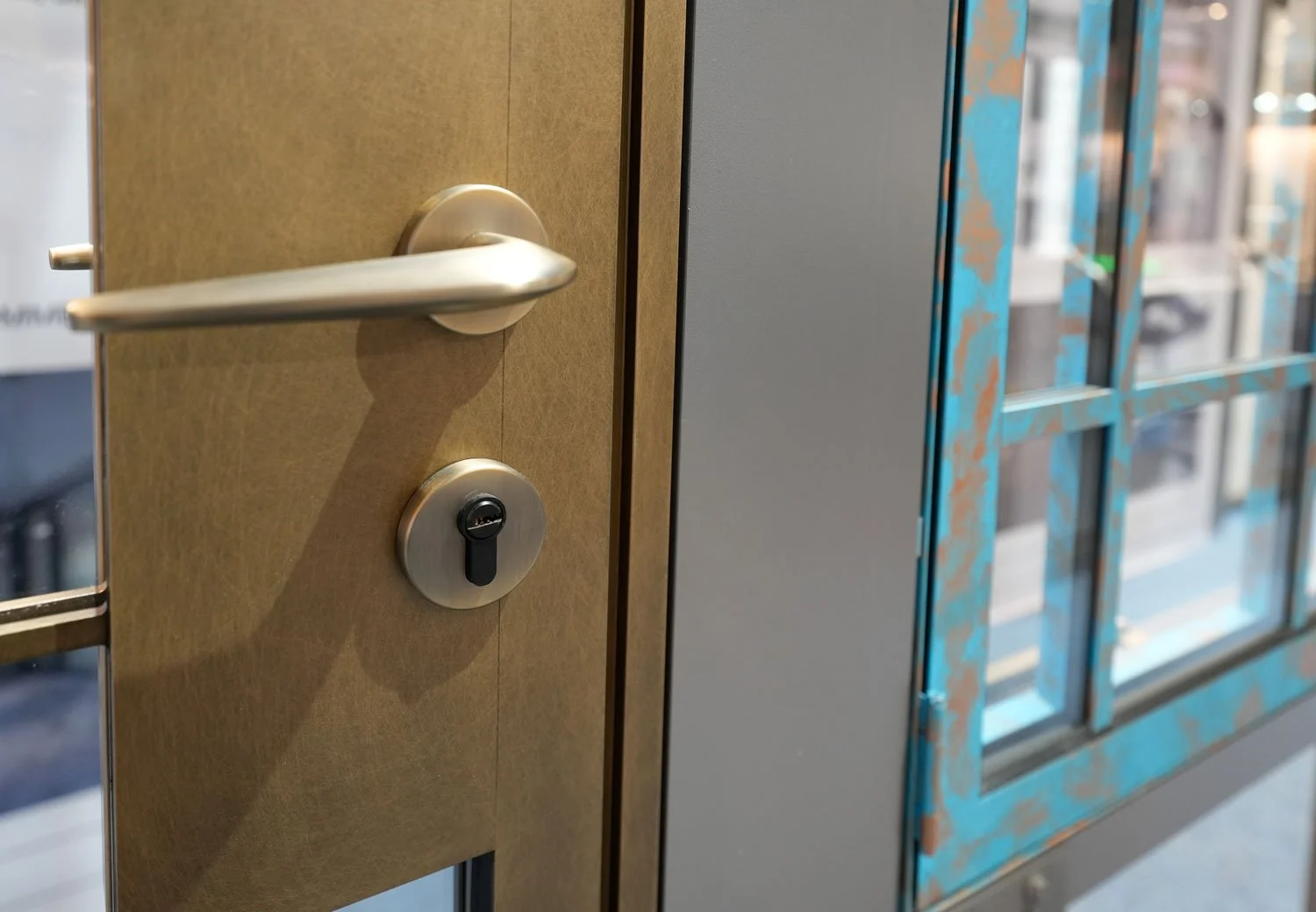

Close-up of a metallic door handle and lock on a beige door, with a building visible through large window panes to the right.

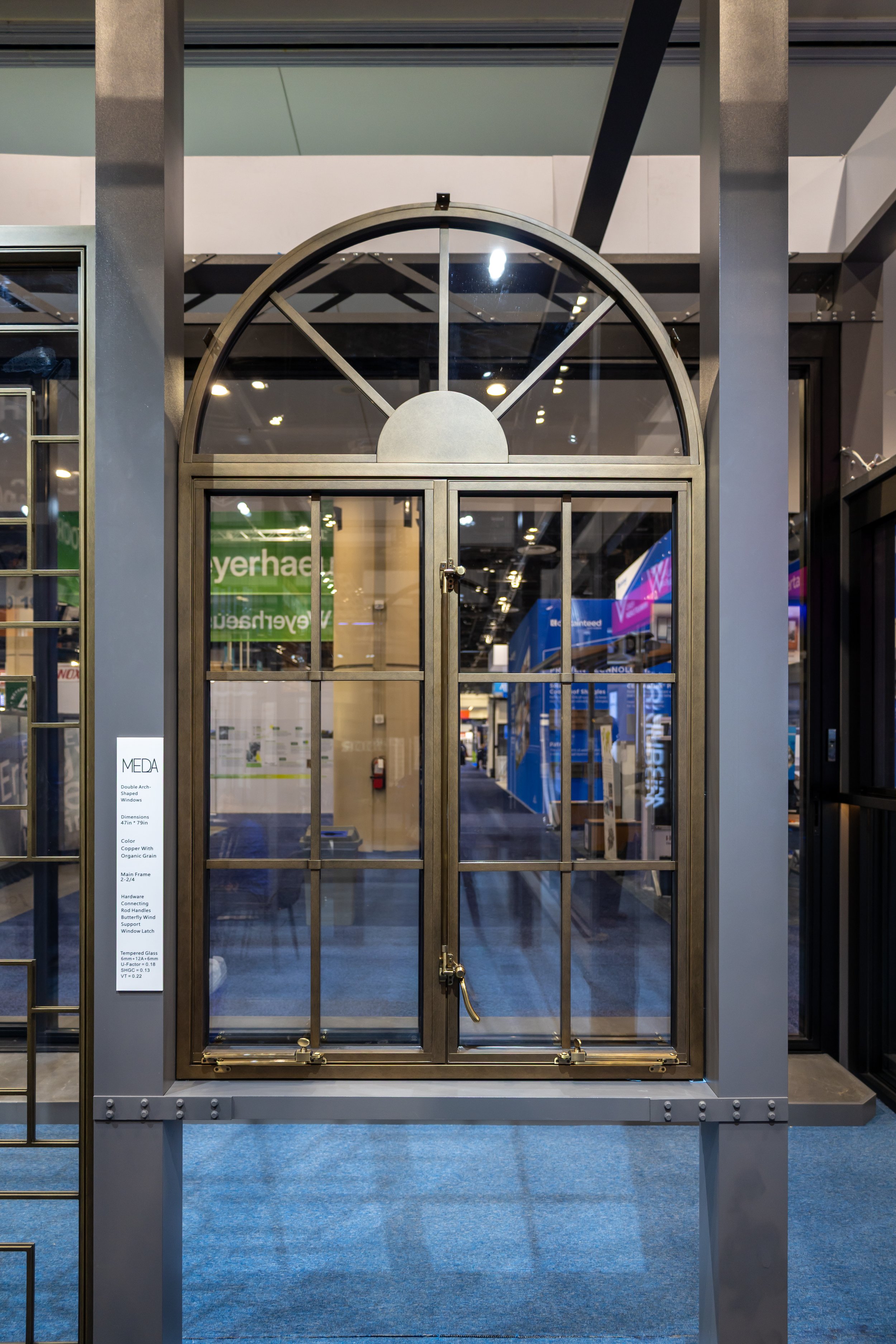

Metal window with arched top and multiple panes displayed in a store.

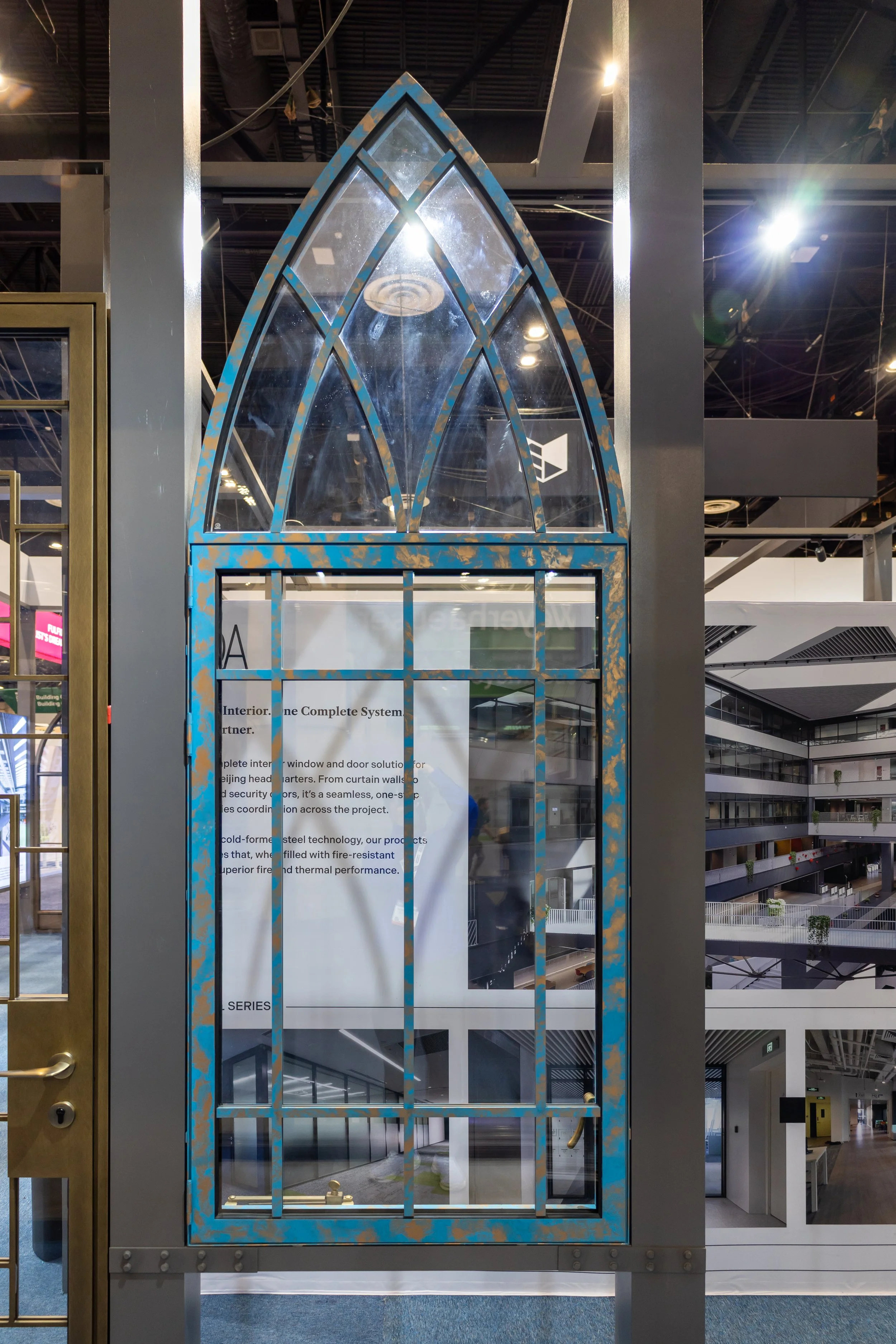

A decorative window frame with pointed arch design, made of blue and gold metal, displayed indoors at a modern building or furniture store.

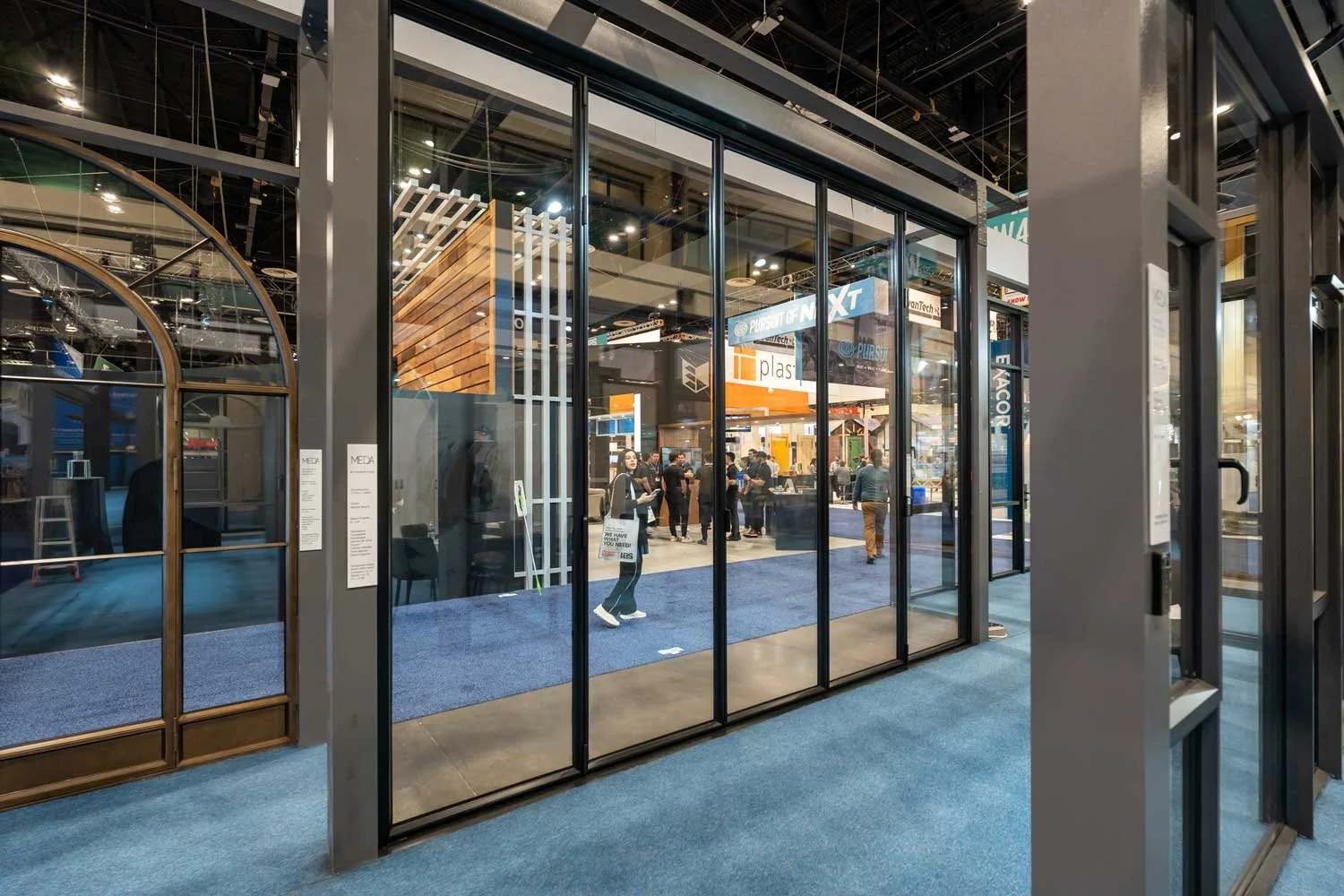

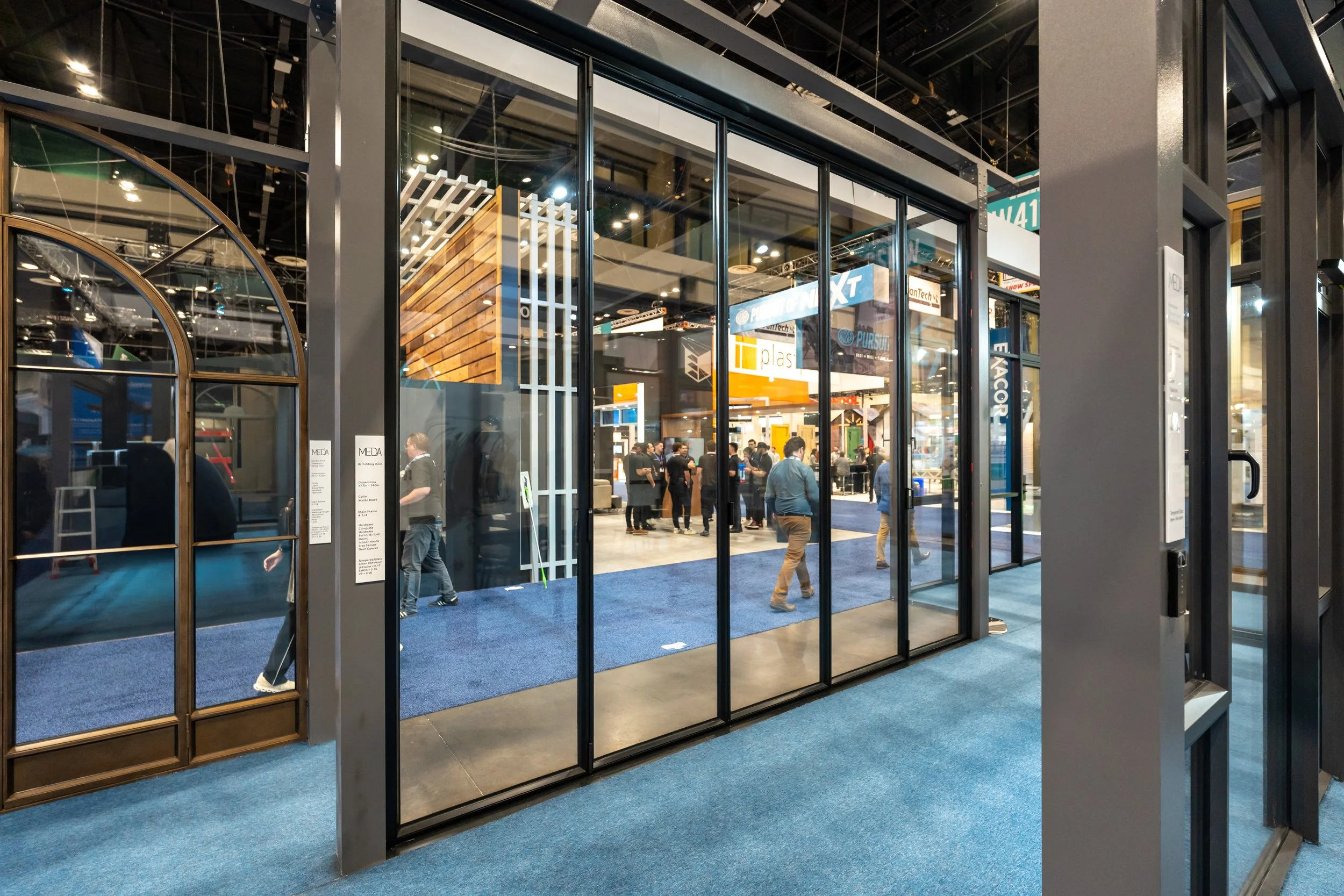

View through glass doors into an exhibition hall with people walking and displays, including signs for 'PURSUIT OF A NEW' and 'EME'

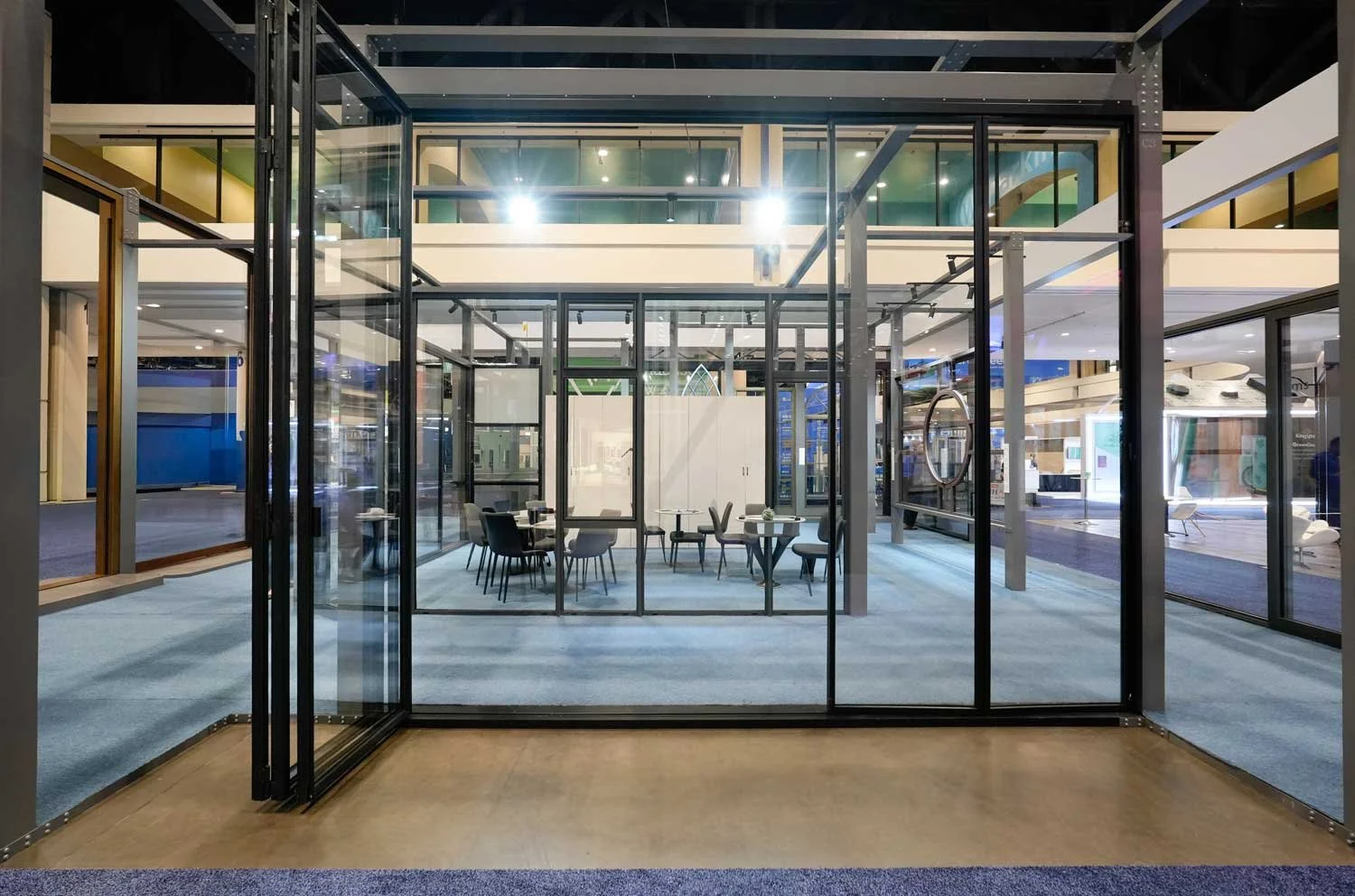

Modern glass-walled meeting space with chairs and tables inside a shopping mall or office building.

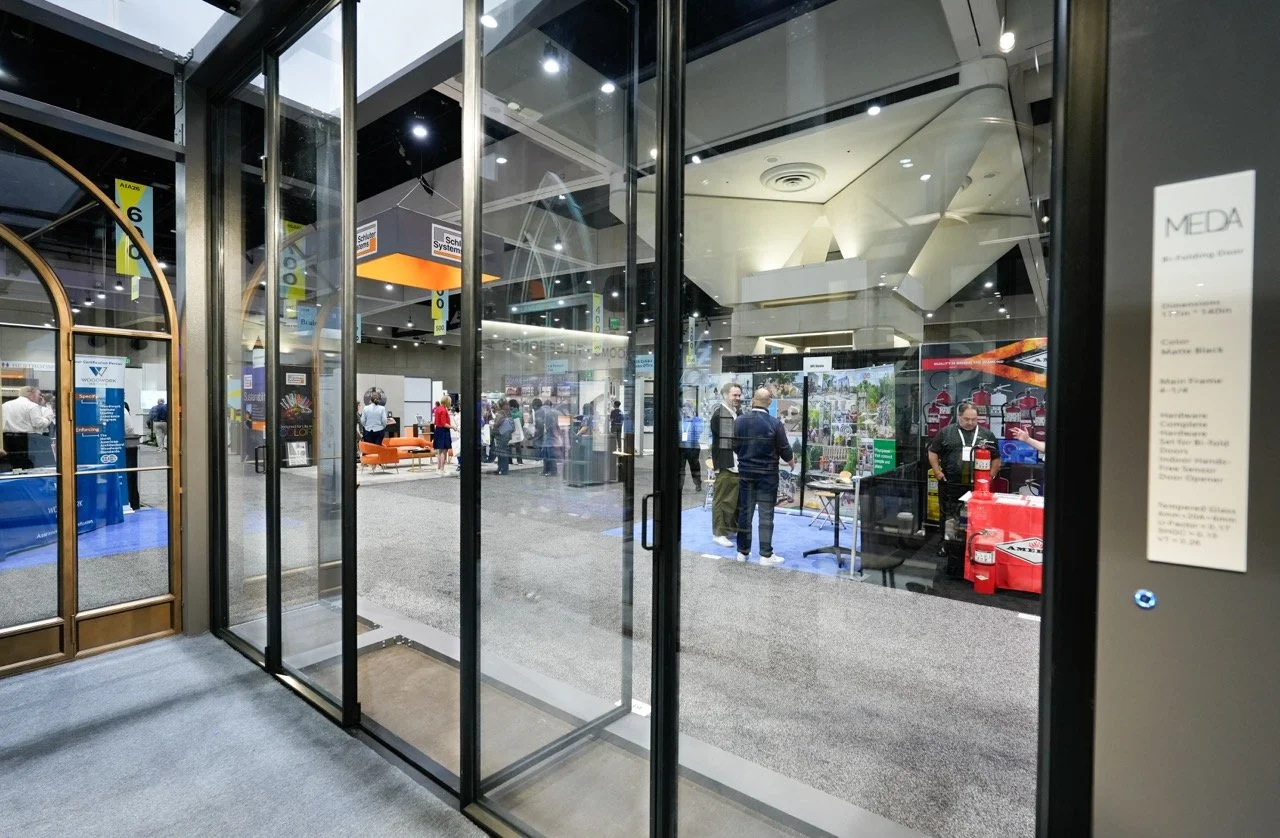

_DSC8712 Large.jpeg

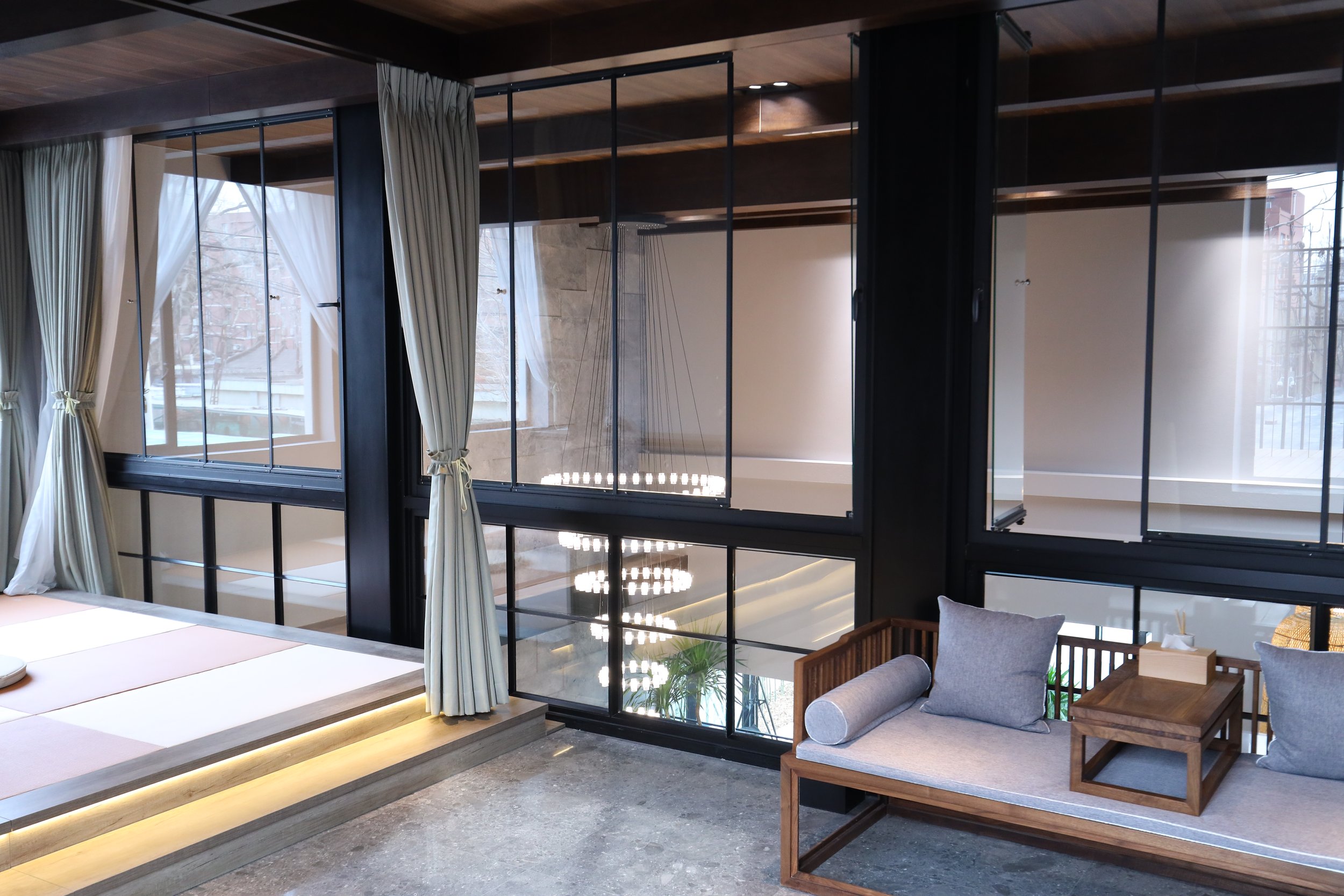

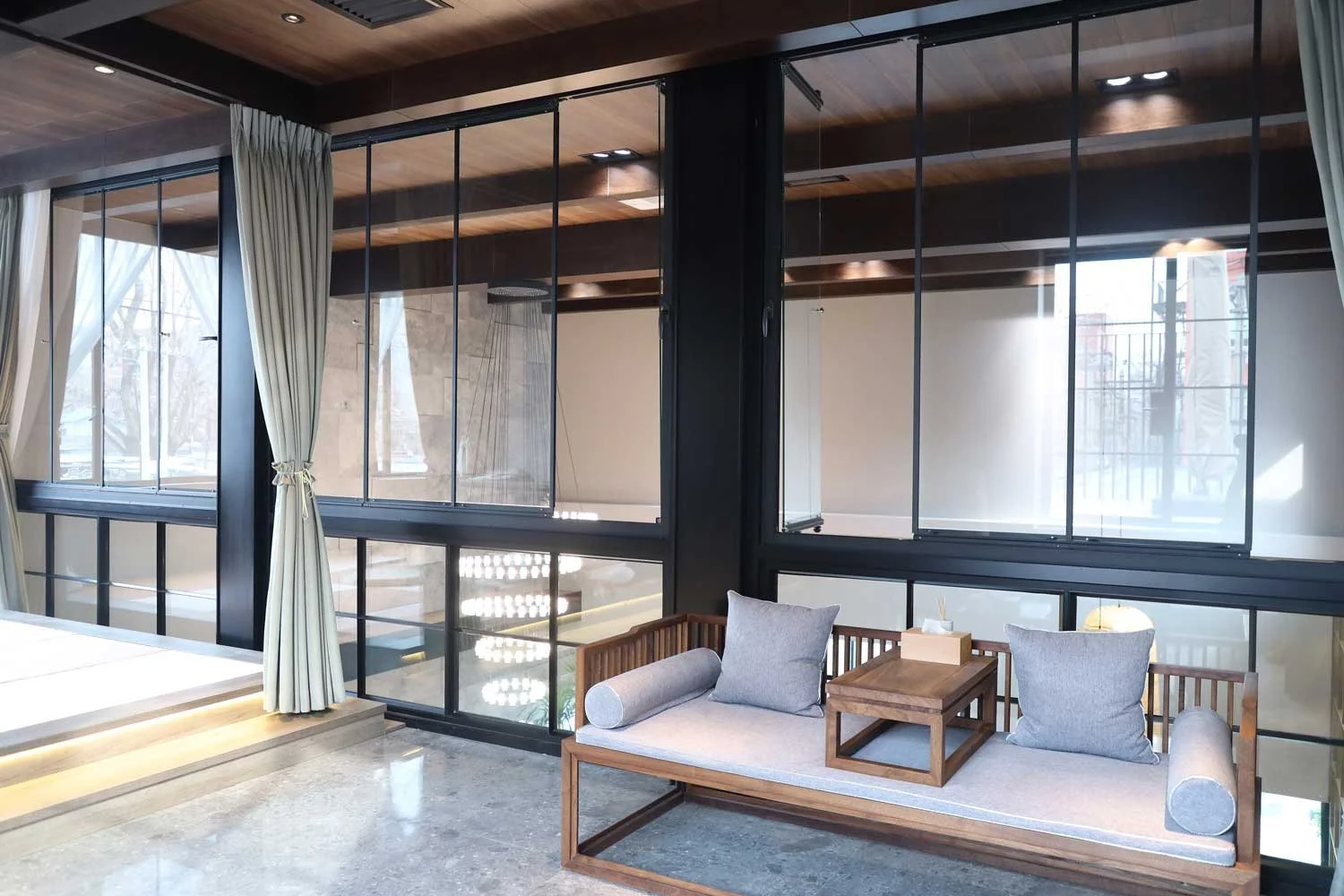

Interior view of a modern room featuring a window with beige curtains, a wooden bench with cushions, and glass walls with black metal framing.

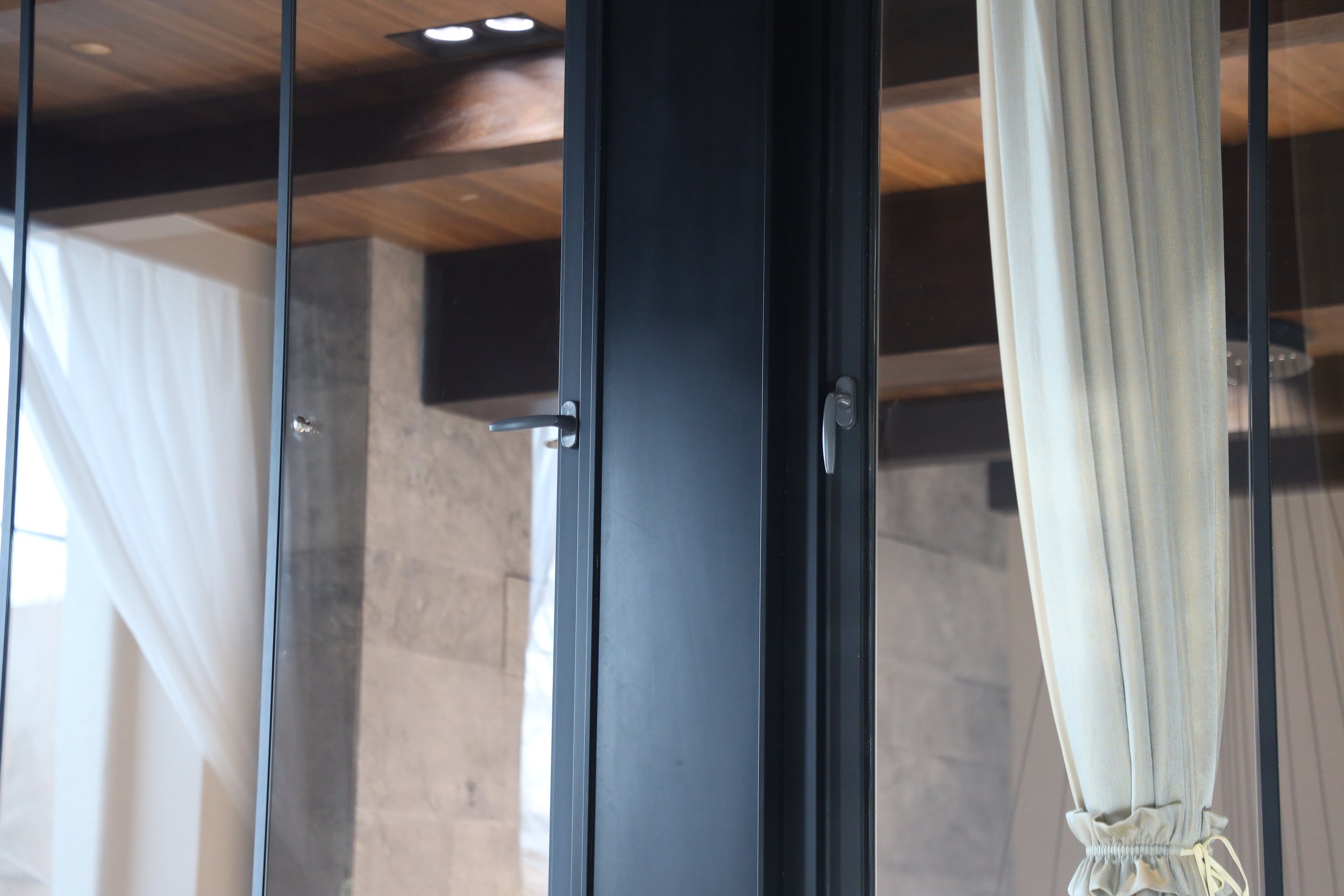

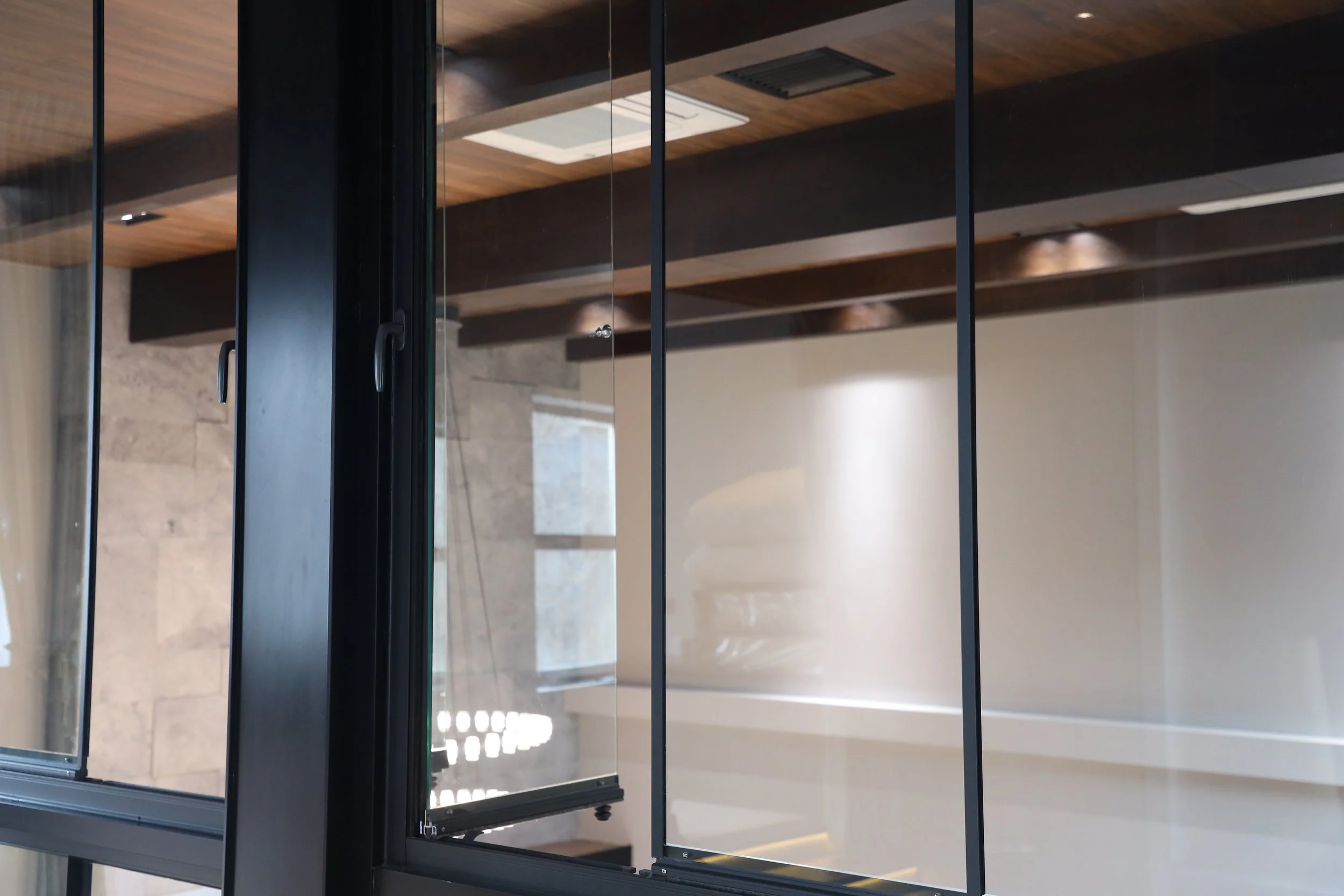

A close-up view of a large glass window with black metal framing, showing reflections of the interior and exterior surroundings.

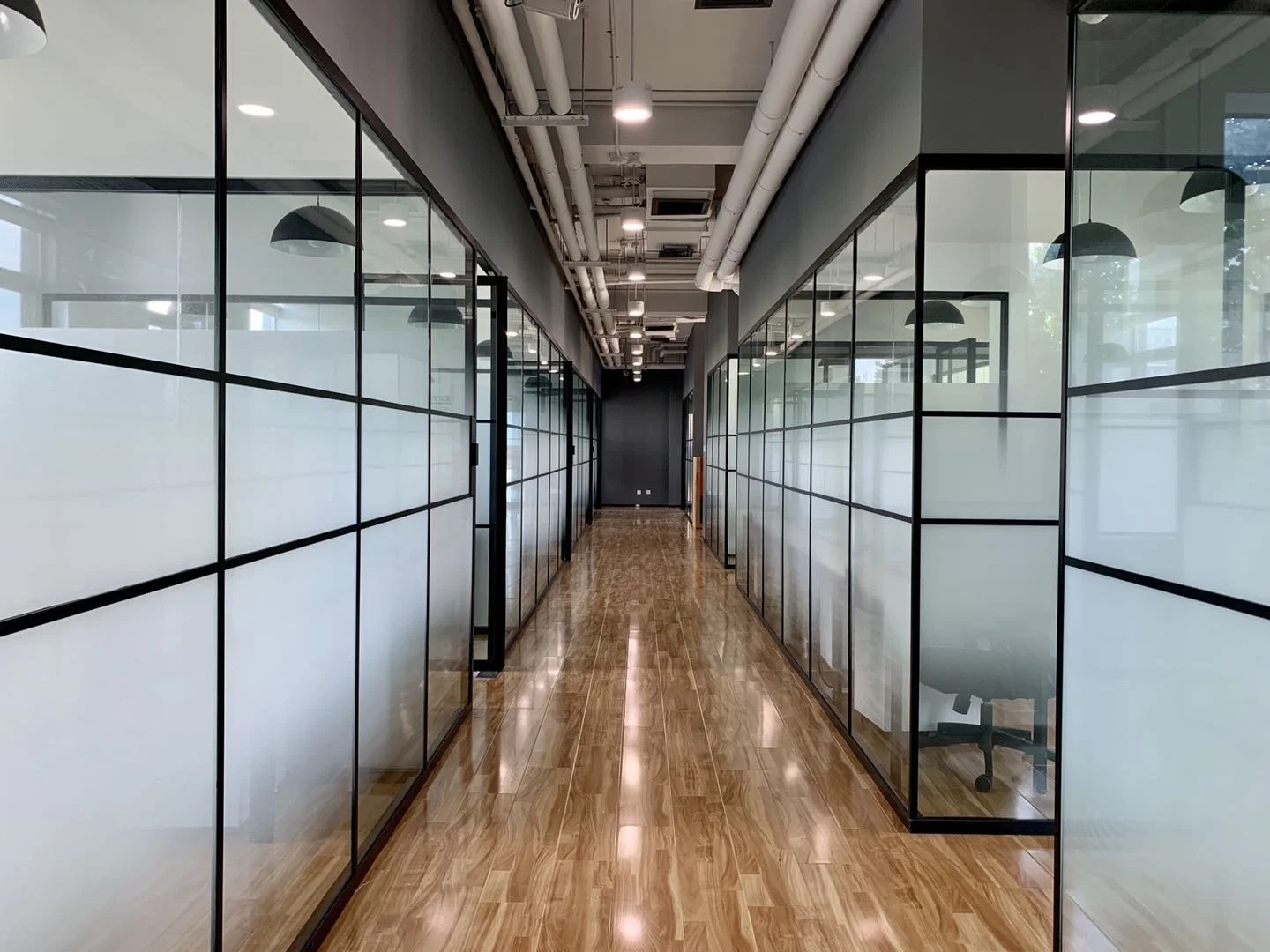

Empty office hallway with glass wall partitions and wooden flooring.

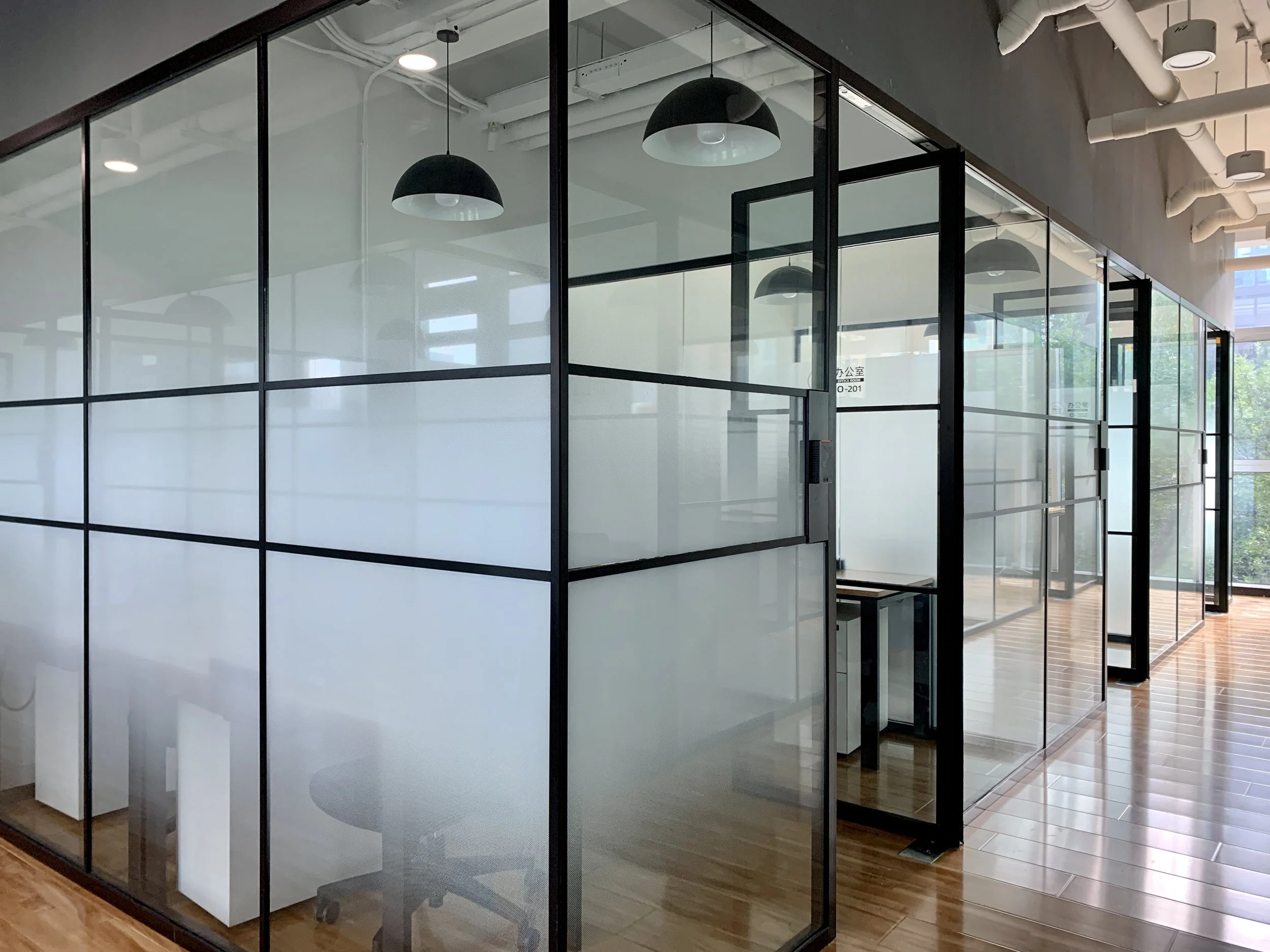

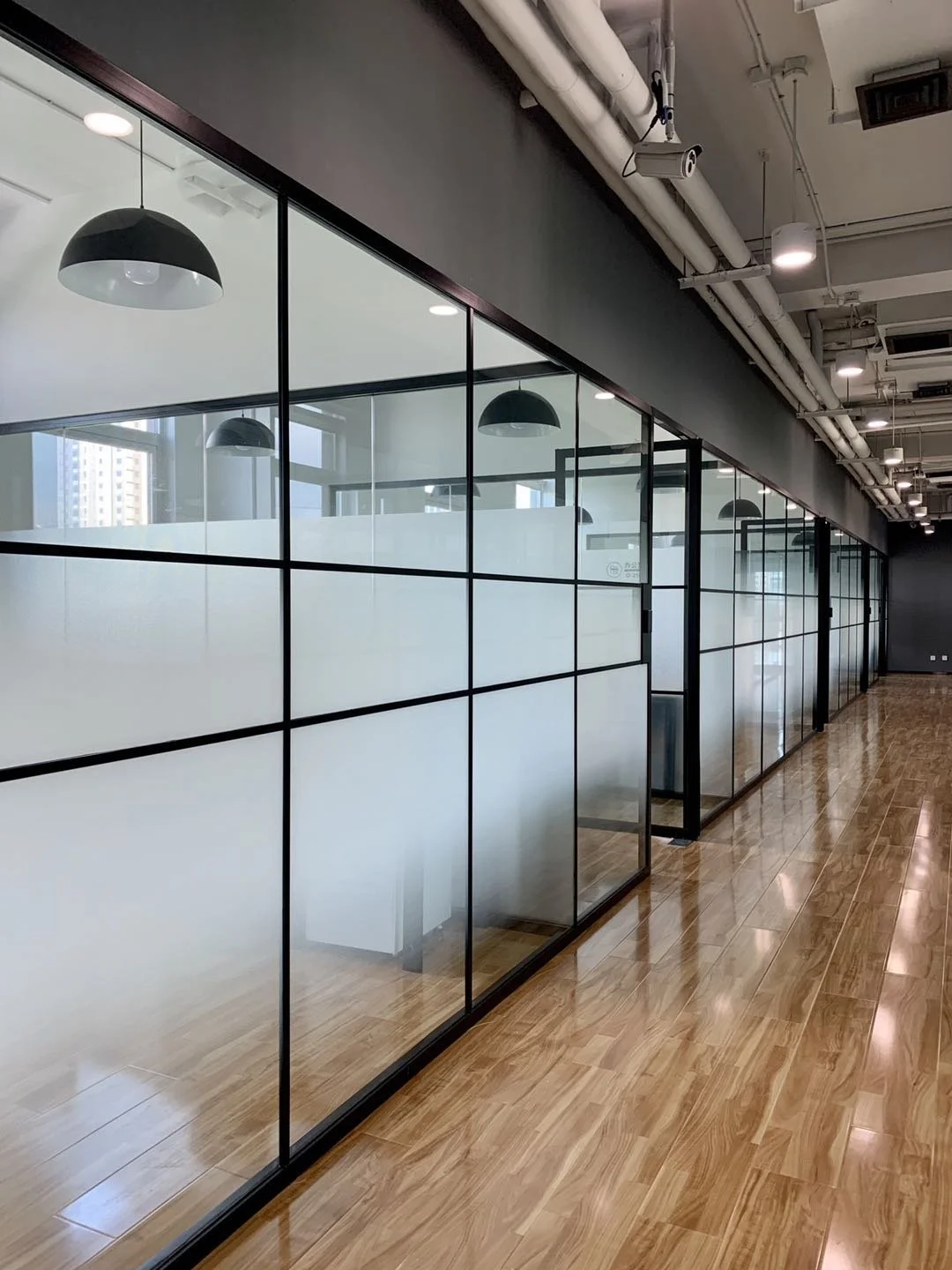

Modern glass-walled office cubicles with black framing, pendant lighting, and wooden flooring.

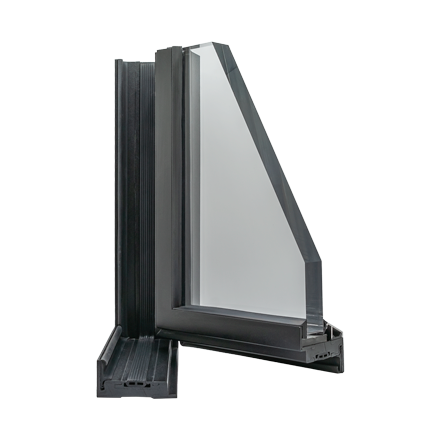

Close-up of a glass window or partition with a black frame, installed in a modern building.

Superior Thermal Performance

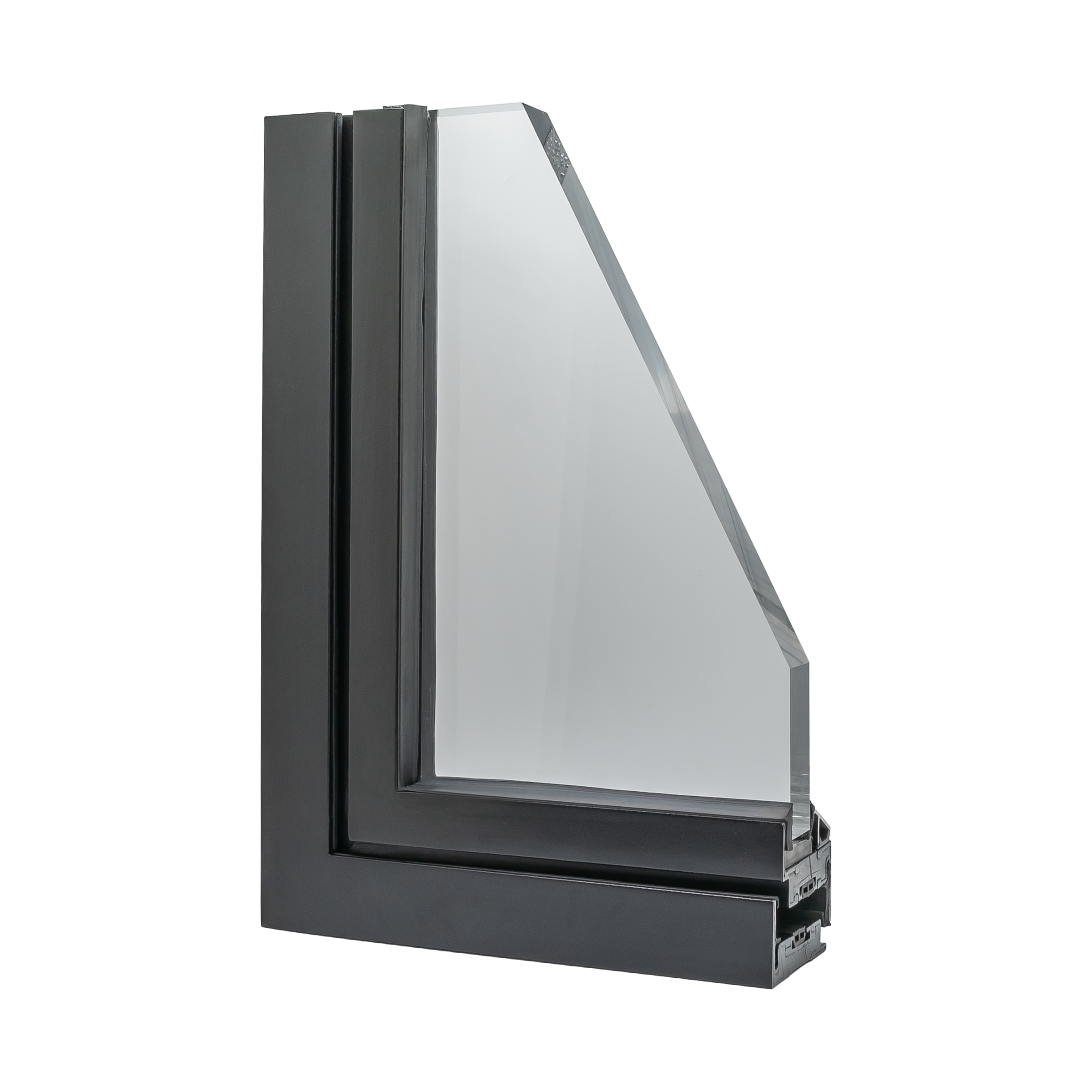

The Slim 65 features a thermally broken design with cast polyurethane insulation, which keeps heat and cold from passing through the frame.

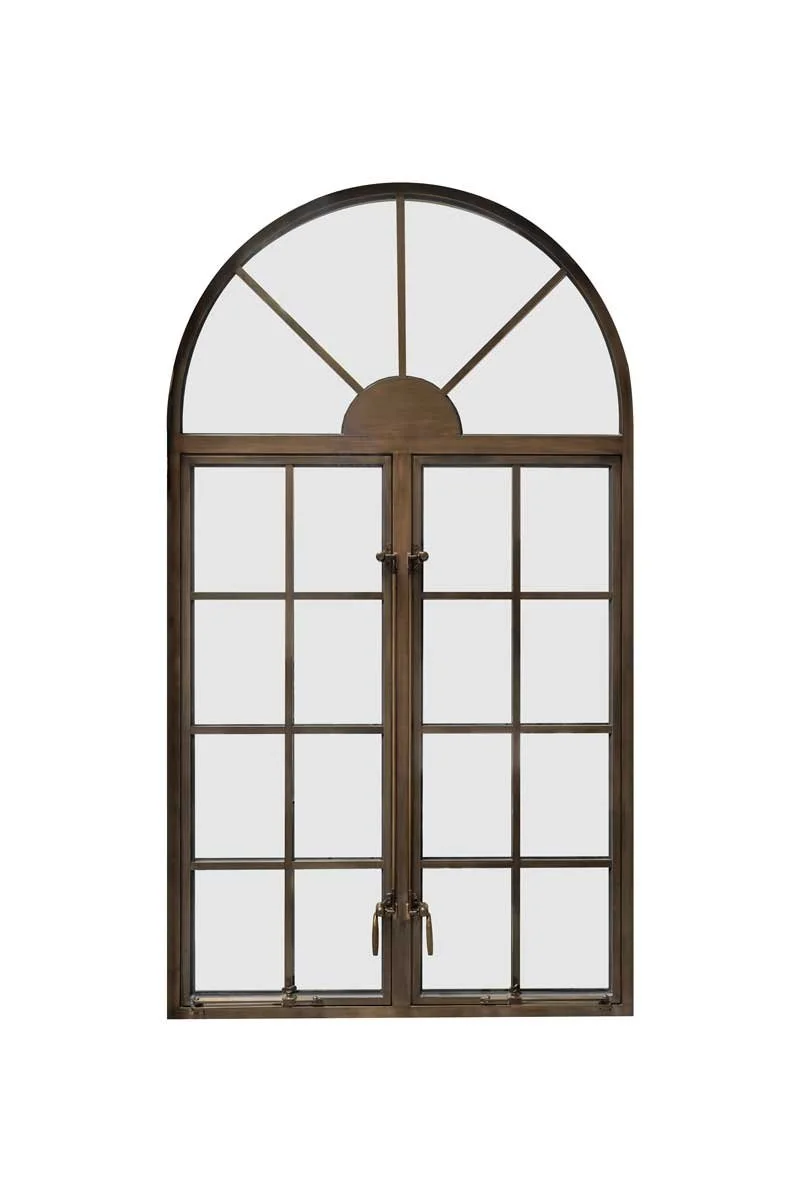

A double-door window with an arched top, divided into multiple glass panes with a metal frame.

Efficient and Flexible

  • Superior thermal performance, airtight and watertight, with excellent wind resistance.

  • C-slot design makes it easy to install a wide range of locks, hinges, and other hardware, offering greater flexibility.

  • Offered in four distinct styles: retro, luxury, arc-shaped retro, and arc-shaped luxury—designed to complement any architectural aesthetic.

Explore the Collection

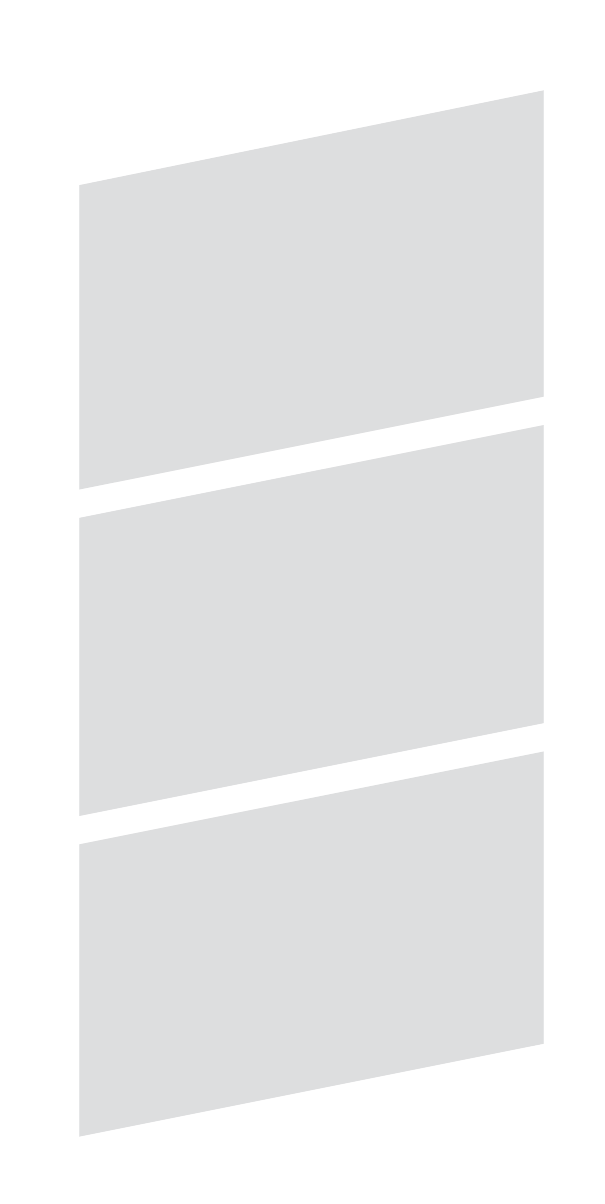

An illustration of a fixed window, set against a blue background.

Fixed Window

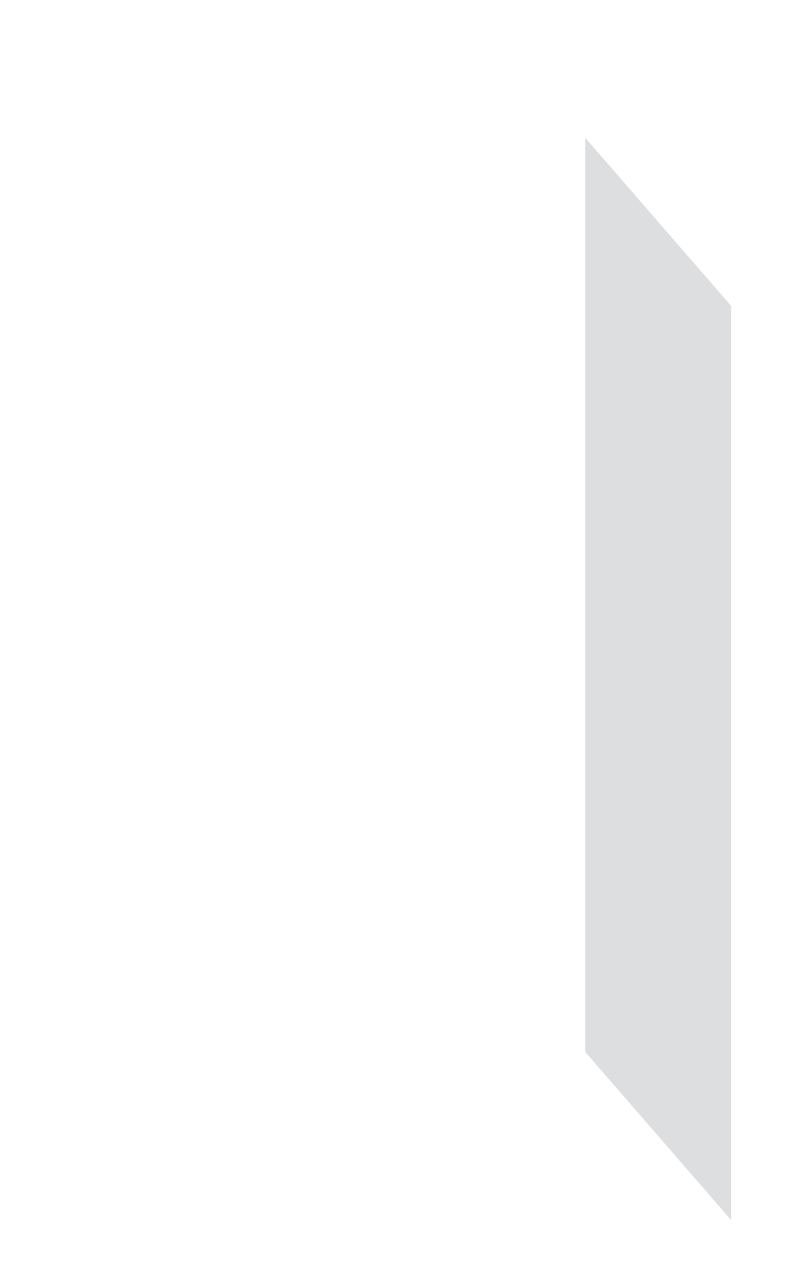

An illustration of a casement window opening inward, set against a blue background.

Inward-Opening Window

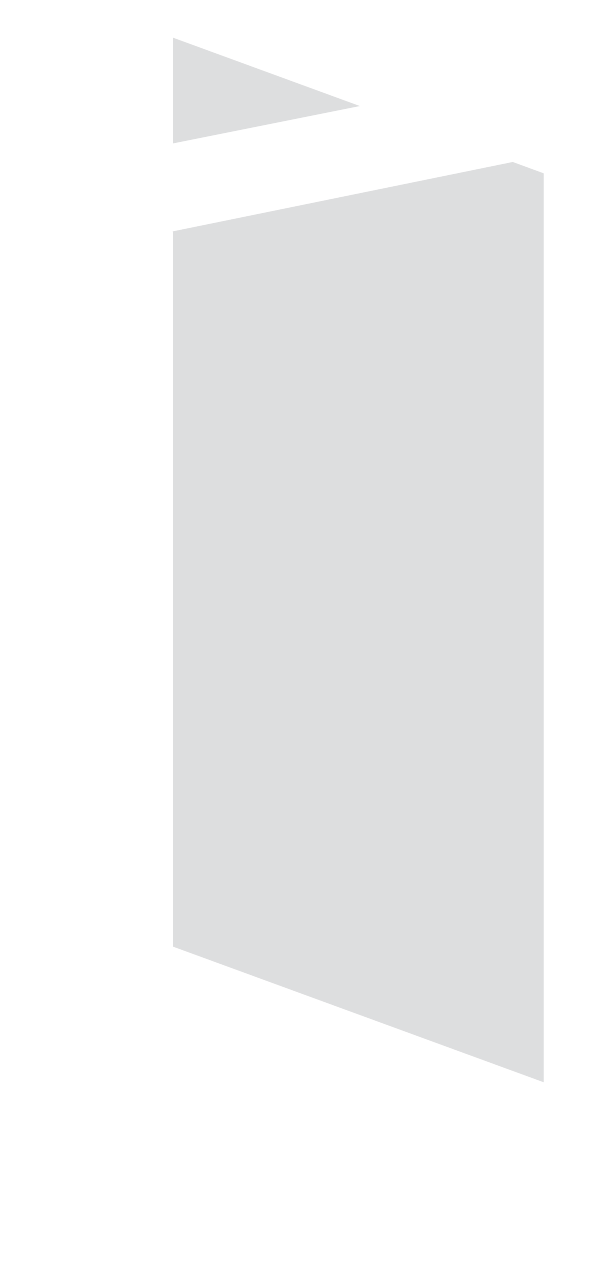

A line art illustration of a casement window opening outward, set against a blue background.

Outward-Opening Window

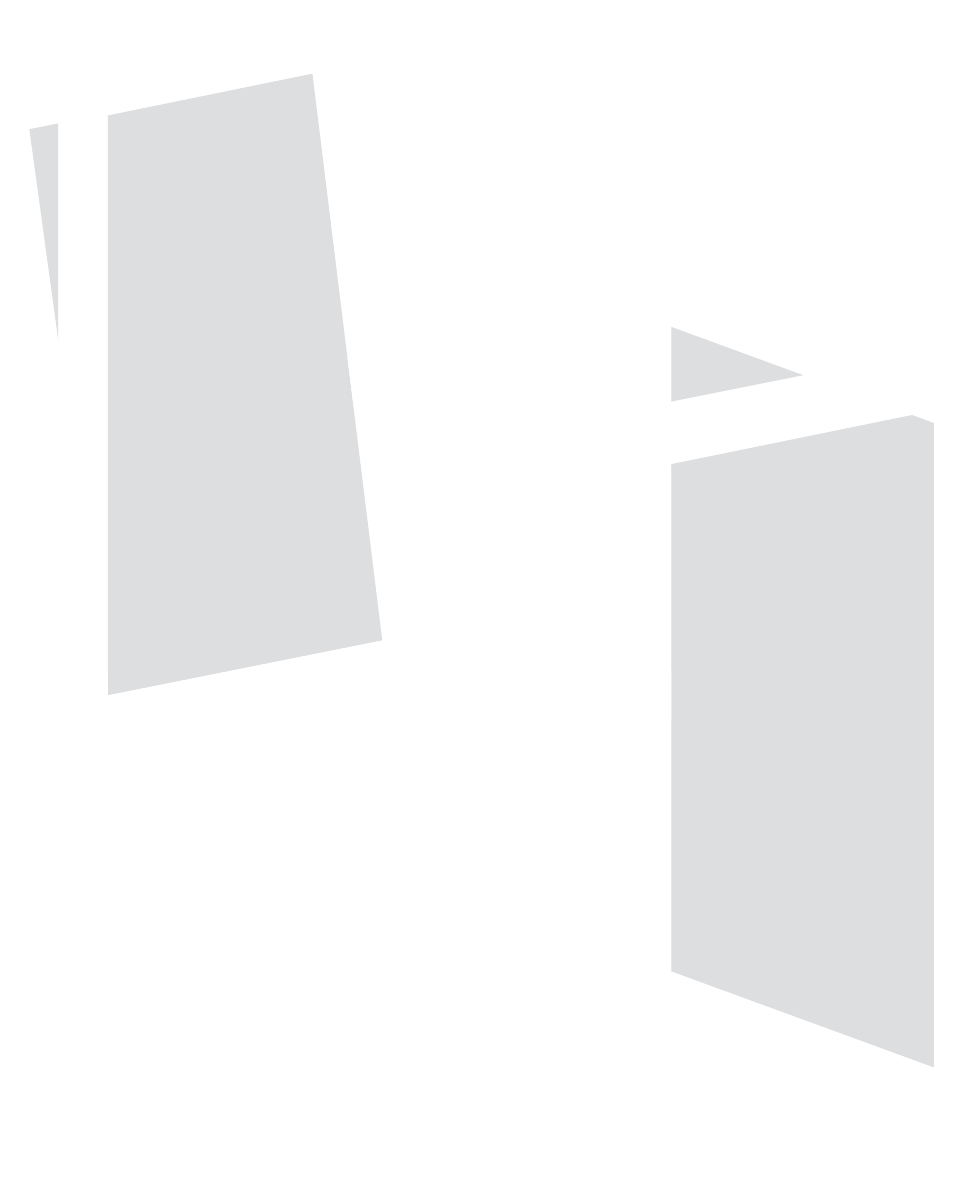

A line art illustration of a tilt and turn window, demonstrating two ways to open it—tilting and opening outward.

Tilt & Turn Window

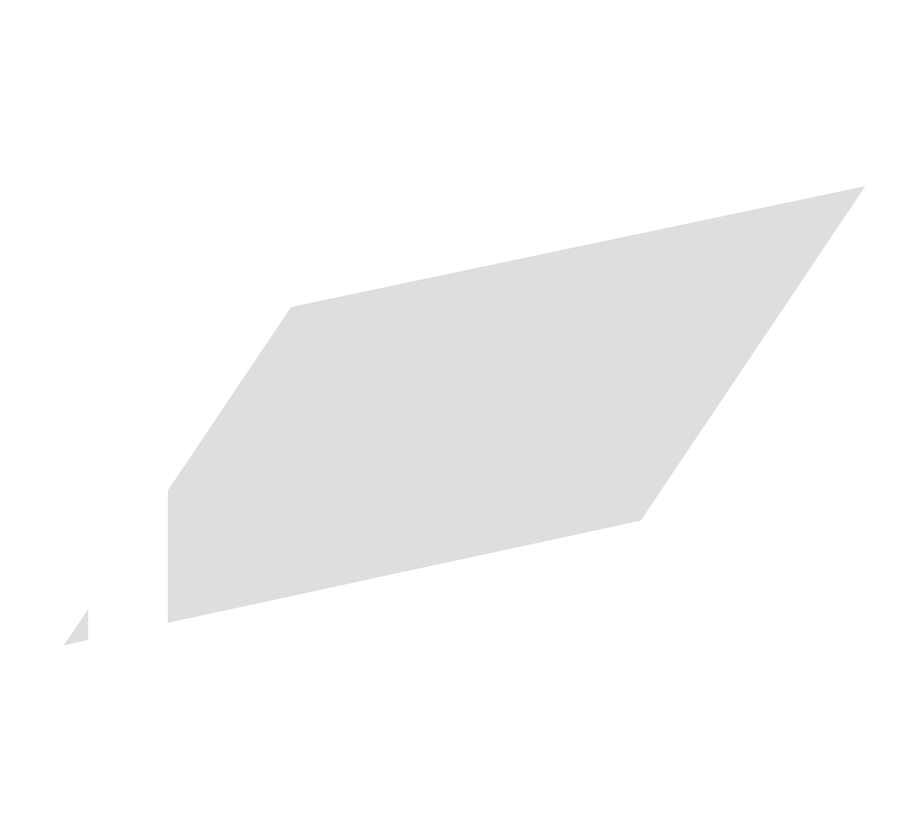

A line art illustration of an opened center pivot window, set against a blue background.

Center-Pivot Window

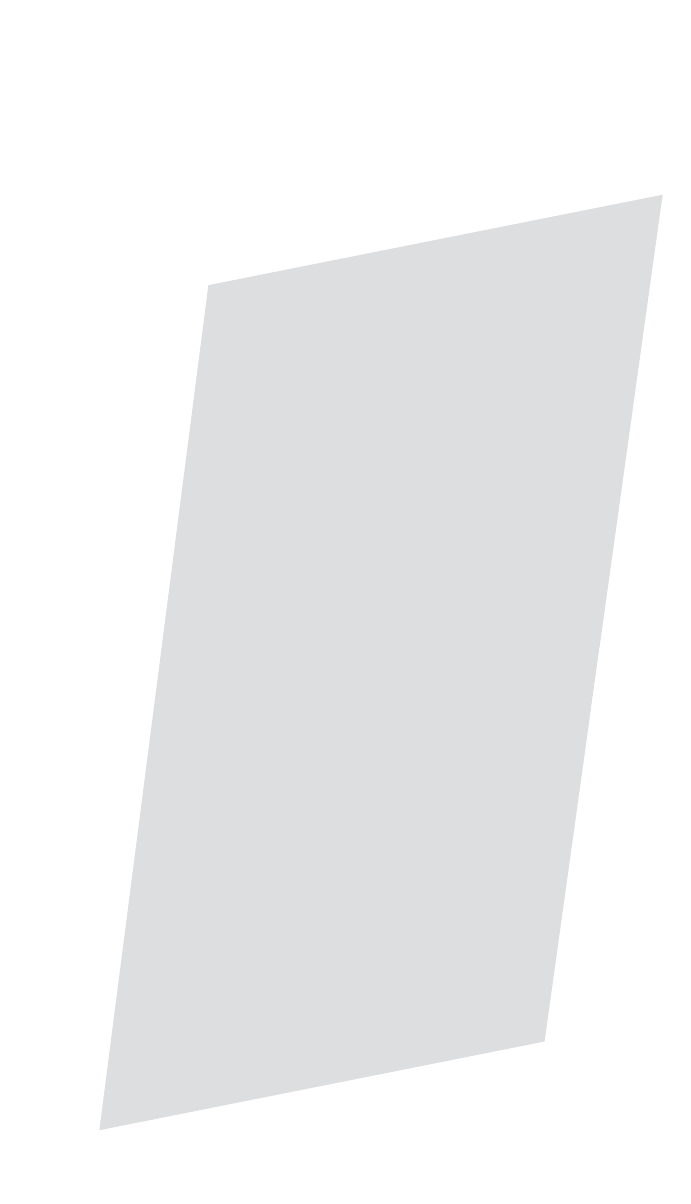

A line art illustration of an opened hopper window, tilting inward.

Hopper Window

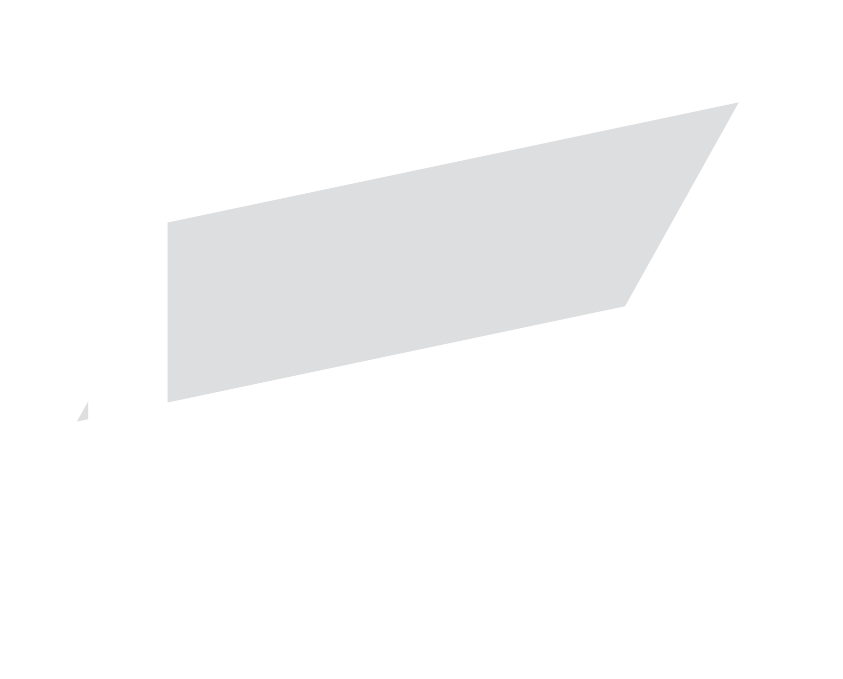

A line art illustration of an awning window, opening outward.

Top-Hinged Outward Opening Window

A line art illustration of a double swing door, opening outward.

Inward/Outward- Opening Swing Door

A line art illustration of a spring door, opening outward.

Spring Door

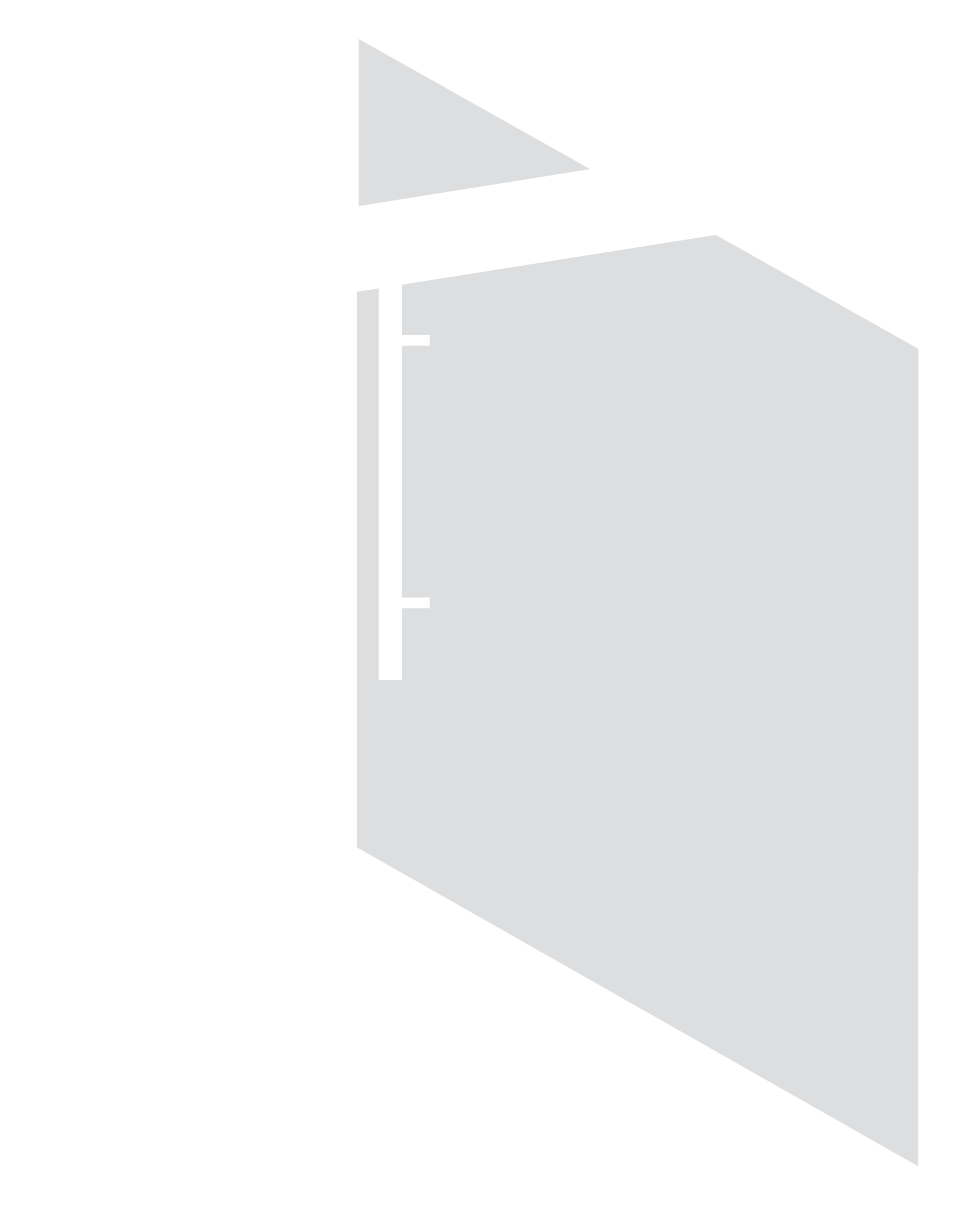

A line art illustration of an opened center-pivot door.

Center-Pivot Door

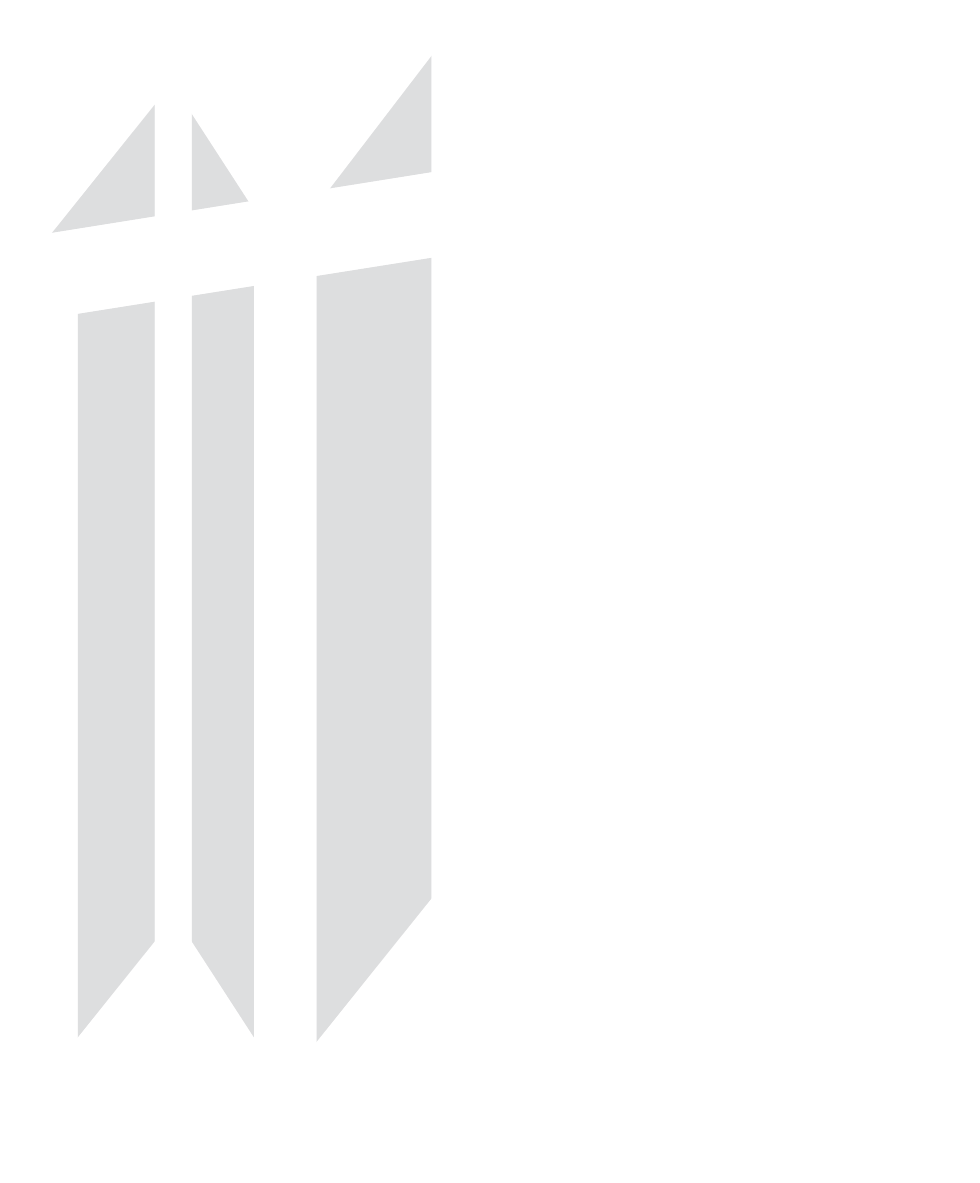

A line art illustration of an opened folding door.

Folding Door

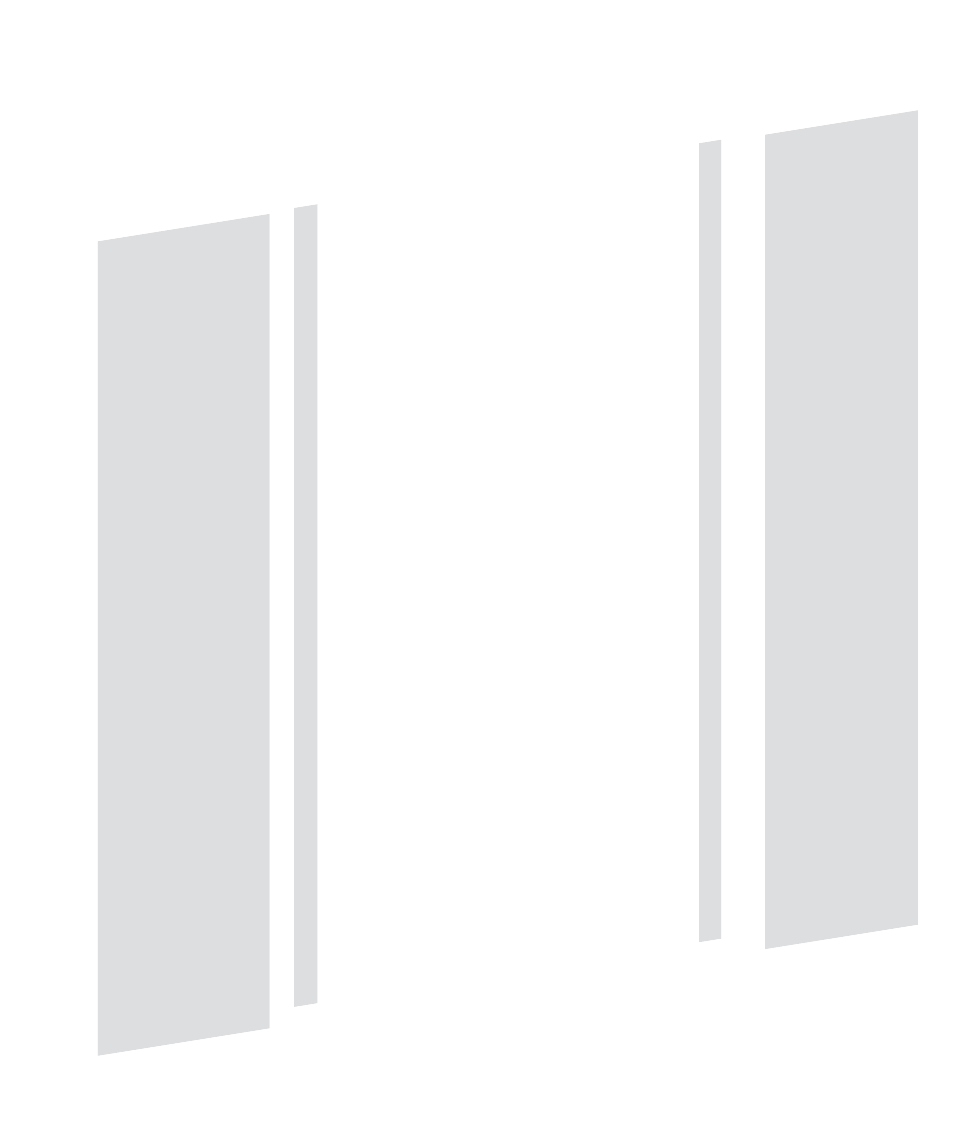

A line art illustration of an opened sliding door.

Automatic Door

A line art illustration of a curtain wall panel.

Partition Wall

    • Galvanized Steel, Stainless Steel, Brass, Copper Plating Wire Drawing

    • PVDF Coating (coating temperature is 80-120℃)

    • Copper-Plated Brushed Finish

  • Inward Window – Single Sash
    24mm glass (1 in)

    • Max: W 900 mm × H 1800 mm (35 × 70 in)

    • Min: W 500 mm × H 500 mm (20 × 20 in)

    43mm glass (2 in)

    • Max: W 750 mm × H 1500 mm (30 × 60 in)

    • Min: W 500 mm × H 500 mm (20 × 20 in)

    Outward Window (with retro linkage hardware)
    24mm glass (1 in)

    • Max: W 750 mm × H 1500 mm (30 × 60 in)

    • Min: W 500 mm × H 800 mm (20 × 32 in)

    Outward-Opening Window (with multi-point hardware)
    24mm glass (1 in)

    • Max: W 900 mm × H 1800 mm (35 × 70 in)

    • Min: W 500 mm × H 500 mm (20 × 20 in)

    43mm glass (2 in)

    • Max: W 1200 mm × H 2200 mm (47 × 86 in)

    • Min: W 500 mm × H 500 mm (20 × 20 in)

    Tilt & Turn Window
    24mm / 43mm glass (1 / 2 in)

    • Max: W 1800 mm × H 1800 mm (70 × 70 in)

    • Min: W 500 mm × H 450 mm (20 × 18 in)

    Center-Hung Window
    24mm glass (1 in)

    • Max: W 1800 mm × H 1500 mm (72 × 60 in)

    • Min: W 500 mm × H 450 mm (20 × 18 in)

    Top-Hinged Outward-Opening Window – Manual
    24mm glass (1 in)

    • Max: W 1200 mm × H 1500 mm (48 × 60 in)

    • Min: W 500 mm × H 450 mm (20 × 18 in)

    Swing Door – Inward / Outward
    24mm glass (1 in)

    • Max: W 1200 mm × H 3000 mm (47 × 118 in)

    • Min: W 500 mm × H 1800 mm (19 × 70 in)

    Spring Door – Floor-Sprung
    24mm glass (1 in)

    • Max: W 1200 mm × H 3500 mm (47 × 137 in)

    • Min: W 600 mm × H 1800 mm (23 × 70 in)

    Automatic Door
    24mm glass (1 in)

    • Max: W 1800 mm × H 3600 mm (70 × 141 in)

    Center-Pivot Door
    24mm glass (1 in)

    • Max: W 1600 mm × H 3500 mm (62 × 137 in)

    Folding Door
    24mm glass (1 in)

    • Max (single panel): W 1000 mm × H 3000 mm (39 × 118 in)

    • Min (single panel): W 500 mm × H 1800 mm (19 × 70 in)

    • Retro

    • Luxury

    • Arc-Shaped Retro

    • Arc-Shaped Luxury

    View Slim 65 Window & Door Styles PDF

    • Welded Hinges (3 per door)/Screw-On type Standard Hinges (2 per door)/Folding Hinges

    • Multi-Point Lock System: Customized Lock Box, Multi-Point Lock Body, and Handle.

    • Single-Point Lock System: Lock Box, Single-Point Lock Body, and Handle.

    • Handle Style: Vintage Style/Modern Minimalist

    • Concealed Opening Limiter

    • Built-in Multi-Position Support Rods.

    • The three-cavity structure design can achieve a better heat insulation effect

    • K (f) of the SLIM65 profiles is 1.6W/(㎡·K)

    • Profile width is 65mm

    • The SLIM65 profile wall thickness is 1.5mm

    • The largest notch size C slot can be matched with European standard hardware.

    • SLIM65 profiles system structure is cold rolled formed steel profiles

    • Connection to solid wall or lightweight partition wall

    • PA66 Thermal break strips

    • CPUR (cast polyurethane rubber)

    • Nylon spacers

    • Glass decorative strips (flat decorative strips series, pointed decorative strips series)

    • Bottom door steel plate (coating color matching the profile color)
